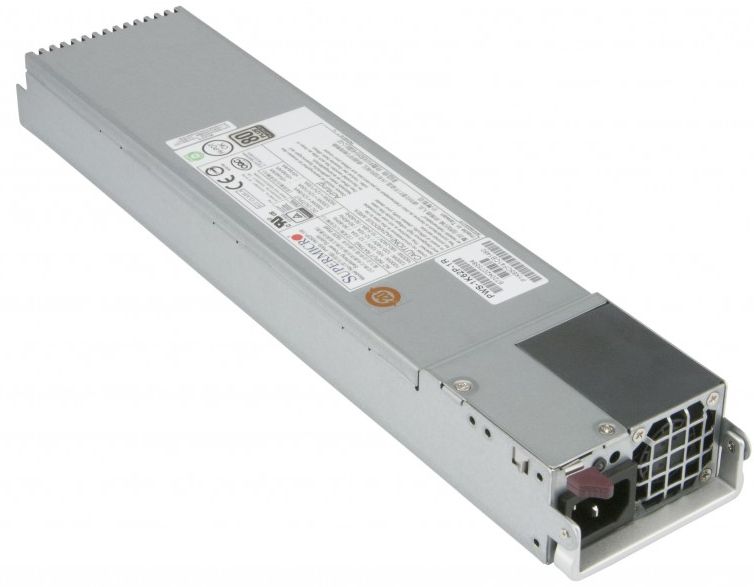

PWS-1K62P-1R Supermicro 1620W 1U Redundant Power Supply Modülü

  • Stok Kodu: PWS-1K62P-1R
  • Kategori: Power Supply
  • Markalar: HazırSunucu

Fiyat Teklifi için proje@sunucudeposu.com

Tel : 0850 304 93 76

  • Karşılaştırma Listenize Ekleyin
  • Fiyat Düşünce Bana Bildir
  • Alarm Listenize Ekleyin
  • Ürün Özellikleri

PWS-1K62P-1R  Supermicro 1620W 1U Redundant Power Supply Modülü


Supermicro PWS-1K62P-1R,% 94 verimlilikle 1620W çıkış gücü sağlayabilen bir 80 Plus Platinum güç kaynağıdır.

Aktif güç faktörü düzeltmesinin (PFC) kolaylığını yaşayın ve bir dizi gerilim için AC girişini otomatik olarak düzeltin.

Uyumlu Supermicro 1U sistemlerinin arka yüzüyle bağlantı kurmak için bir kart kenar konnektörüne sahiptir. Bu güç kaynağı, yalnızca size Supermicro sunucunuza güvenilir bir güç sağlamayı sağlamak için değil aynı zamanda aşırı voltaj, aşırı akım ve üniteye gömülmüş koruma devresi yoluyla kısa devreden korumak için tasarlanmıştır.

Donanımınızın, 150.000 saatin üzerinde bir arıza ile (MTBF) yüksek bir aralık ile çalışıp çalışmayacağını rahatça öğrenin ve PSU'nuzun normal / anormal koşulları hakkında sizi bilgilendirmek için bir LED göstergesi kullanın.

Bu güç kaynağını Sistem çalışırken değiştirebilirsiniz.
İçerdiği tüm malzemeler RoHS gerekliliklerine uygundur ve Supermicro tarafından onaylanmıştır.

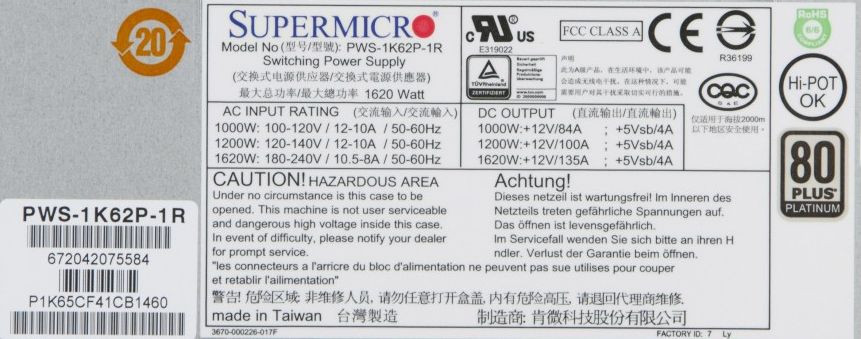

TOTAL POWER OUTPUT 1620W
TYPE Module
FORM FACTOR 1U
DIMENSION (W X H X L) 76 x 40.4 x 336mm
+5V N/A
+12V 100-120Vac: 84A, 120-140Vac: 100A, 180-264Vac: 135A
+3.3V N/A
5V STANDBY 90 to 264Vac: 4.0 / 4.0A
INPUT VOLTAGE RANGE 100-140V/180-240V
INPUT FREQUENCY RANGE 50-60Hz
INPUT CURRENT RANGE 12-10A/10.5-8A
OUTPUT TYPE 23 Pair (46 Pin) Edge Connector
8PIN / 4PIN (12V) CONNECTOR N/A
PFC Yes
PMBUS Yes
ENERGY EFFICIENCY 94% Peak
80 PLUS CERTIFICATION 80 Plus Platinum
WARRANTY 1 year warranty
PRODUCT ENVIRONMENTAL COMPLIANCE RoHS and REACH compliant, details available upon request
PRODUCT RESOURCES
TITLE FORMAT DATE
PWS-1K62P-1R Spec Sheet April 2017
