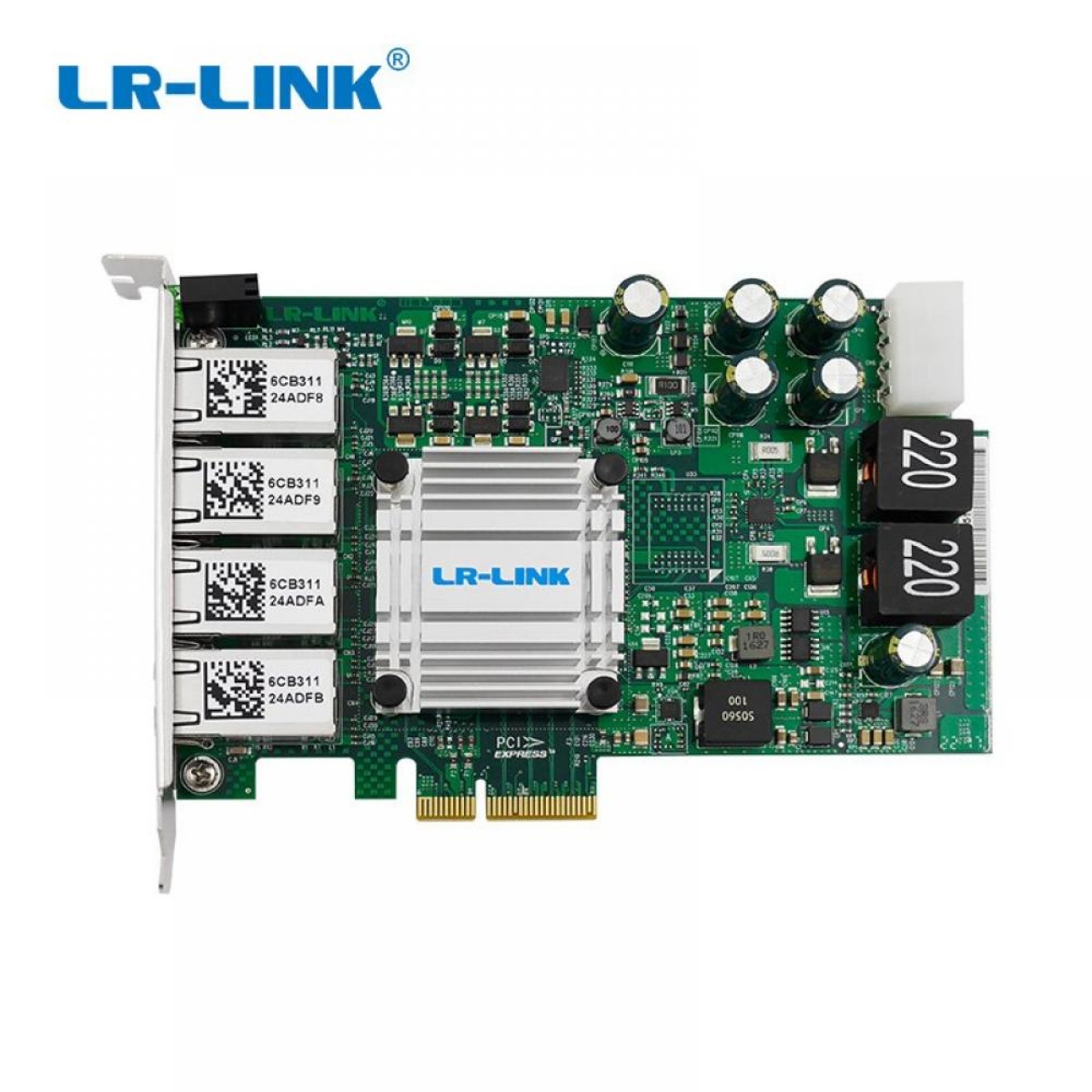

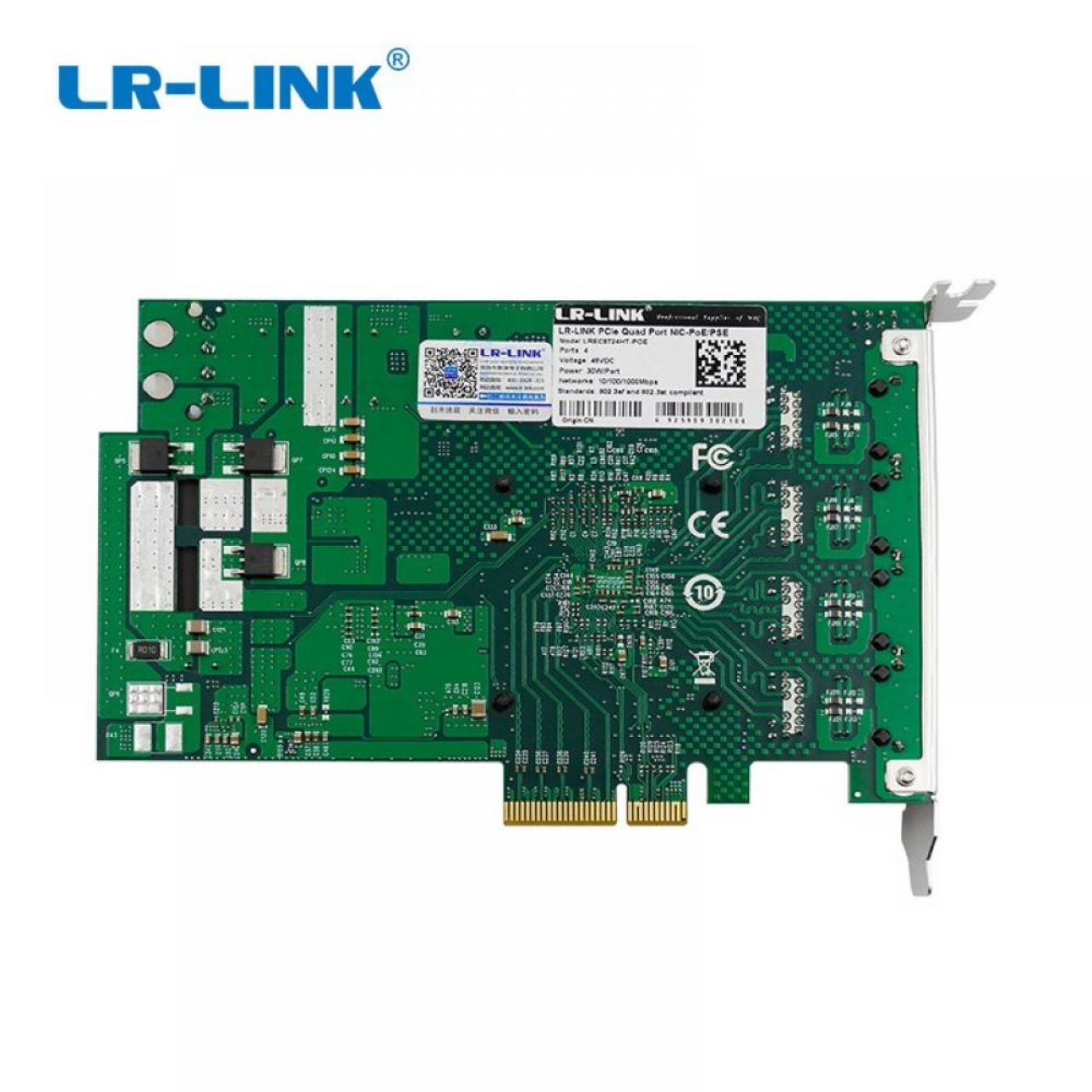

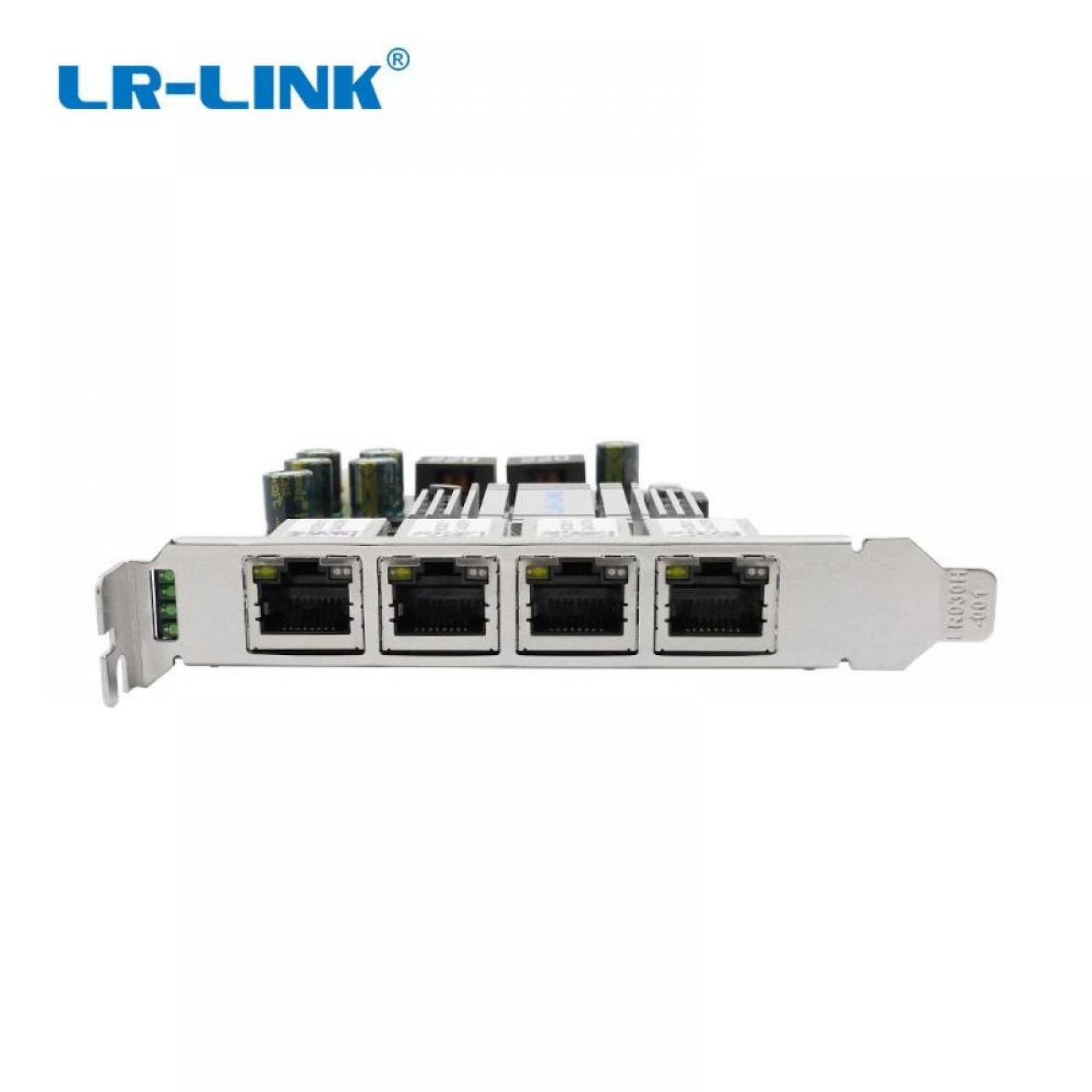

LREC9724HT-PoE
PCI Express x4 Quad Port 802.3at PoE+ Gigabit PoE Machine Vision Card Intel I350 Based(4 x PoE)
Key Features
• Quad Port PoE+ Adapter
• 10/100/1000Mbps per port
• PCI Express 2.1, 2.5 GT/s, x4 lanes
• Supports +12V DC AT/ATX input
• Support 802.3at and IEEE 802.3af, each port delivers up to 30W of power, 125W total power budget
• Powered Device (PD) auto detection and classification per PoE+ port
• 2.25KV Isolation protection on LAN ports and power
• Supports IEEE-1588 and IEEE-802.1 AS
Datasheet:
• Quad Port PoE+ Adapter
• 10/100/1000Mbpsper port
• PCI Express 2.1, 2.5 GT/s, x4 lanes
• Supports +12V DC AT/ATX input
• Support 802.3at and IEEE 802.3af, each port delivers up to 30W of power, 125W total power budget
• Powered Device (PD) auto detection and classification per PoE+ port
•2.25KV Isolation protection on LAN ports and power
• Supports IEEE-1588 and IEEE-802.1 AS
Controller
Intel I350
Transmission Rate Per Port
10/100/1000Mbps
Network Standard Physical Layer Interfaces
1000BASE-T:Cat 5eor higherup to 100m
100BASE-Tx:Cat5e/6or higherup to 100m
Jumbo Frame Support
Up to 9.5 KB
Operating Temperature
0 °C to 55°C (32°F to 131°F)
Bus Interface
PCI Express x4 lane
LED Indicators
PoE:Green
1000Mbps:Yellow and Green Blinking,100Mbps:Green and Green Blinking,10Mbps:Not illuminate
Power Supply
PCI-Express+12 and +12V DC AT/ATX input
POE Output
Supports 4 PoE+ ports up to 30W at 48V DC
Operating System Support
Windows Server2003/ 2008 /2008 R2 / 2012 /2012 R2 /2016 R2
WindowsXP / Vista /7 / 8 / 8.1 / 10
Linux Stable Kernel version 2.4.x / 2.6.x/ 3.x/ 4.xor later
VMwareESX/ESXi4.x/5.x/6.xor later
