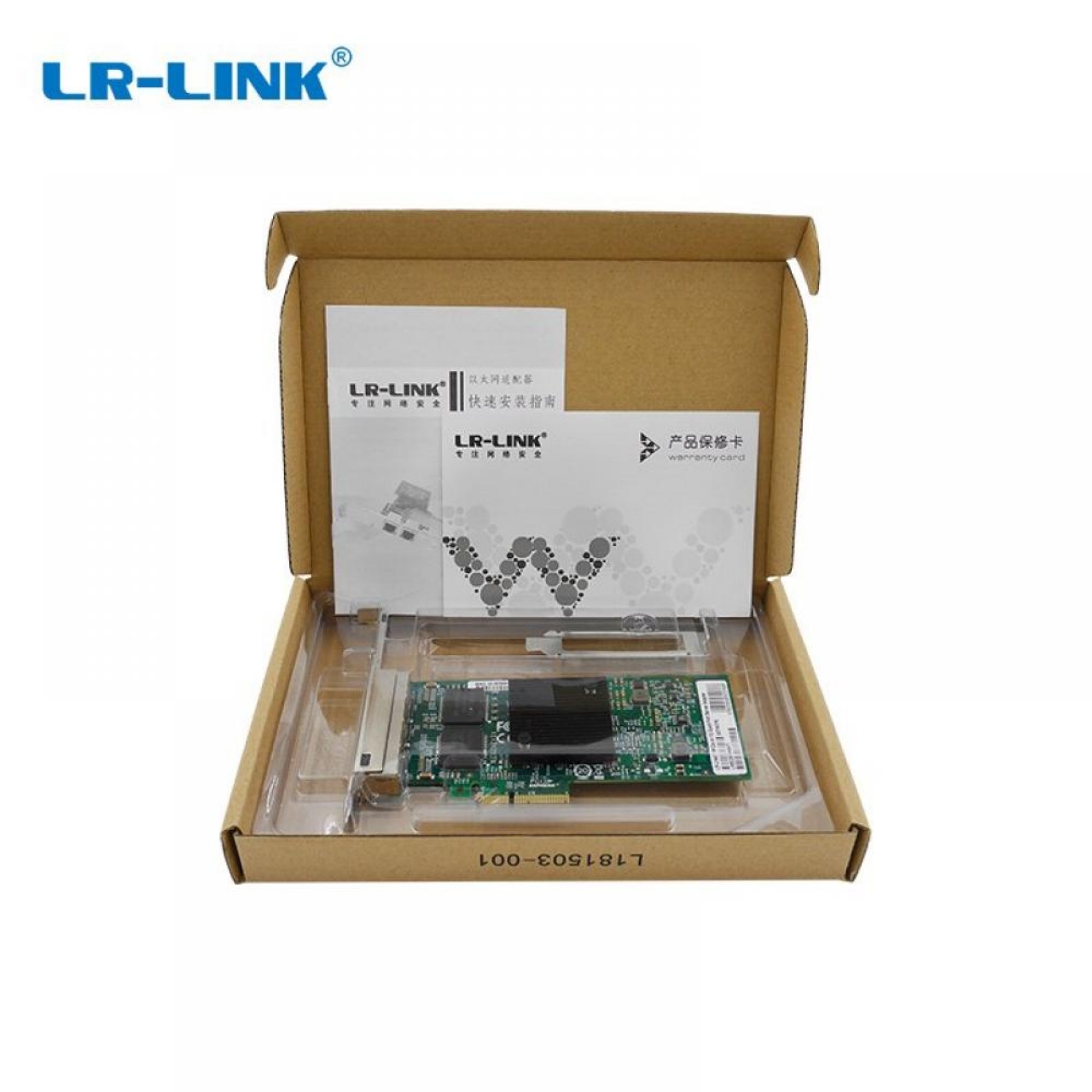

4 Port Ethernet Karti intel 82580 LR-Link LREC9704HT

Controller

• Intel 82580

Transmission Rate Per Port

• 10/100/1000Mbps

Network Standard Physical Layer Interfaces

• 1000BASE-T:Cat 5eor higherup to 100m
• 100BASE-Tx:Cat5/5e/6or higherup to 100m
• 10BASE-T:Cat3/4/5/5e/6or higherup to 100m

Jumbo Frame Support

• Up to 9 KB

Operating Temperature

• 0 °C to 55°C (32 °F to 131°F)

Boot Option and Virtualization

• PXE support, Intel® VT-c

LED Indicators

• 1000Mbps/s:Yellow Link and Green Ack,
• 100Mbps/s:Green Link and Green Ack,10Mbps/s: Not illuminate

Operating System Support

• Windows Server2003/ 2008 /2008 R2 / 2012 /2012 R2 /2016 R2
• WindowsXP / Vista /7 / 8 / 8.1 / 10
• Linux Stable Kernel version 2.4.x / 2.6.x/ 3.x/ 4.xor later
• Linux SLES 9 / 10 / 11or later
• VMwareESX/ESXi4.x /5.x / 6.xor later
