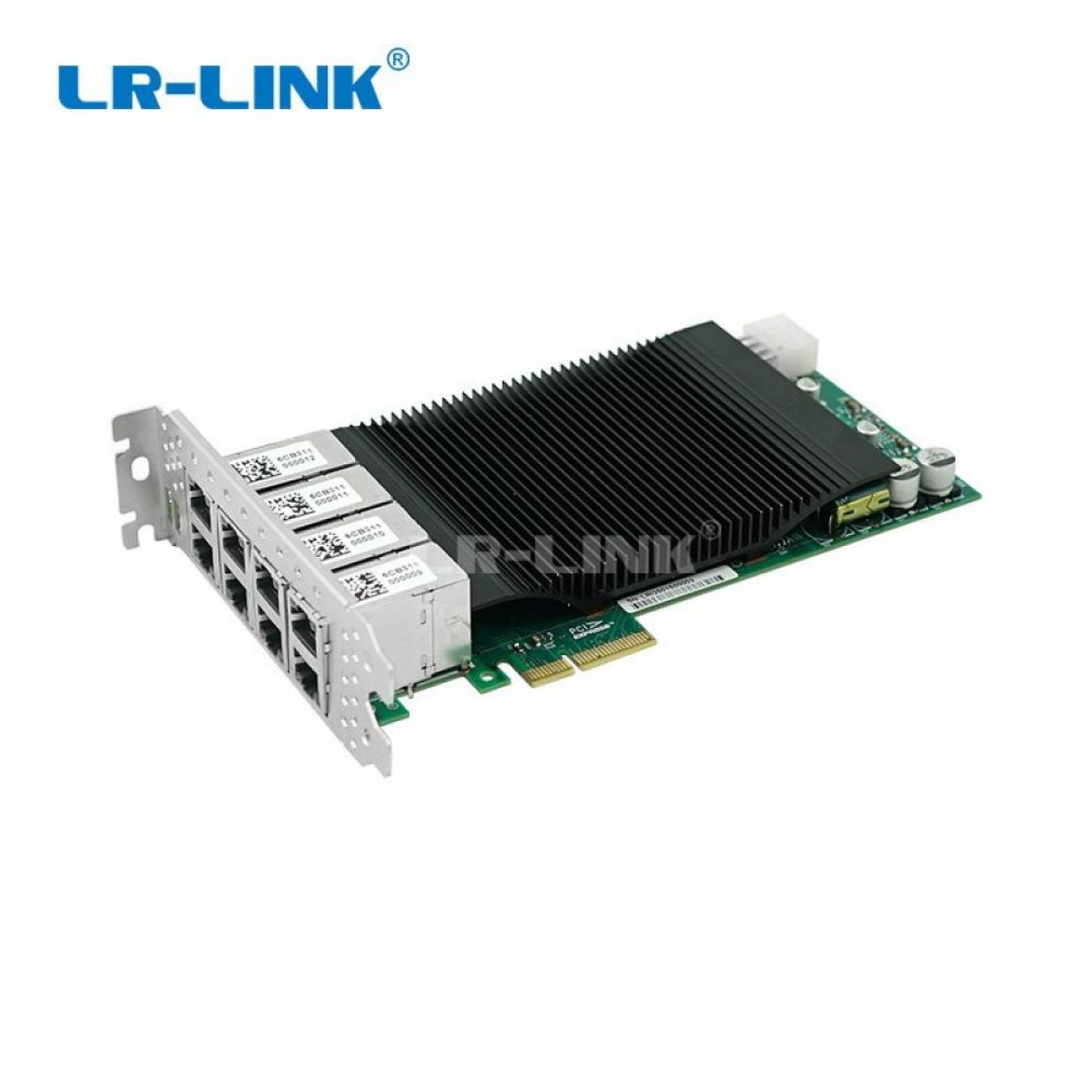

LRES2008PT-PoE 8 Port PoE 802.3at PoE+ Gigabit Vision Frame Grabber Card

LRES2008PT-PoE

8 Port PoE 802.3at PoE+ Gigabit Vision Frame Grabber Card

Genel Özellikler

LR-LINK makes a unique design for this PoE network card:
1.The single-port PoE output power consumption is up to 30W
2.The power output of adaptive to external equipment: Class 0, Class 1, Class 2, Class 3
3.The PoE adapter card is designed with wider RJ45 spacing.
4.specially designed for industrial cable access interface, the collocation of LR-LINK customized industrial Ethernet cable, can a more stable locking copper cable and RJ45, effectively solve the problem of industrial sites RJ45 connection copper cable is not stable, also compatible with standard cable access

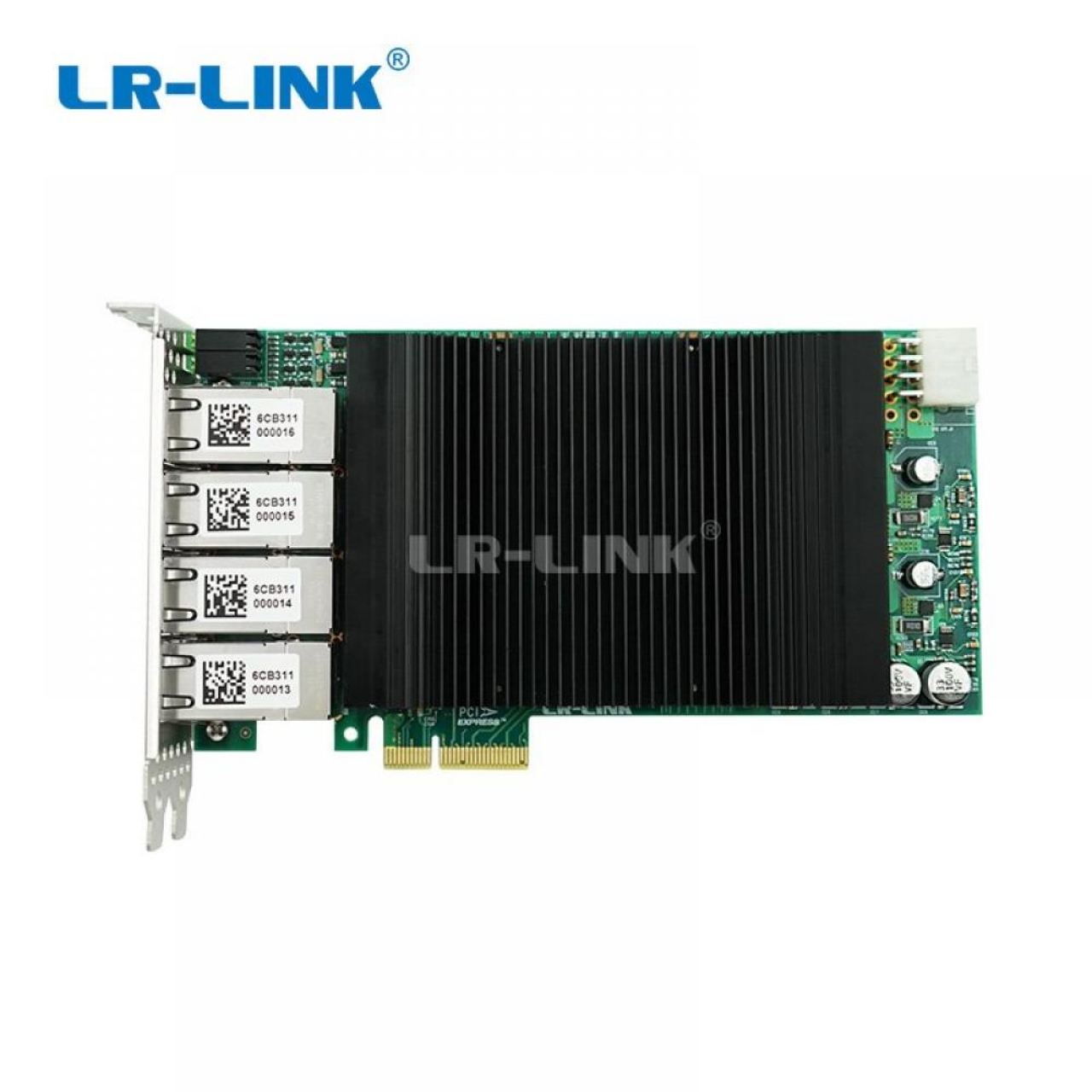

5.The larger heat sink can effectively solve the problem of heat dissipation of the PoE card in the case of poor heat dissipation environment, and effectively ensure the stable operation of the PoE adapter card for a long time
6.Carefully selected the RJ45 connector with thick and heavy gold to ensure more solid and reliable connectivity

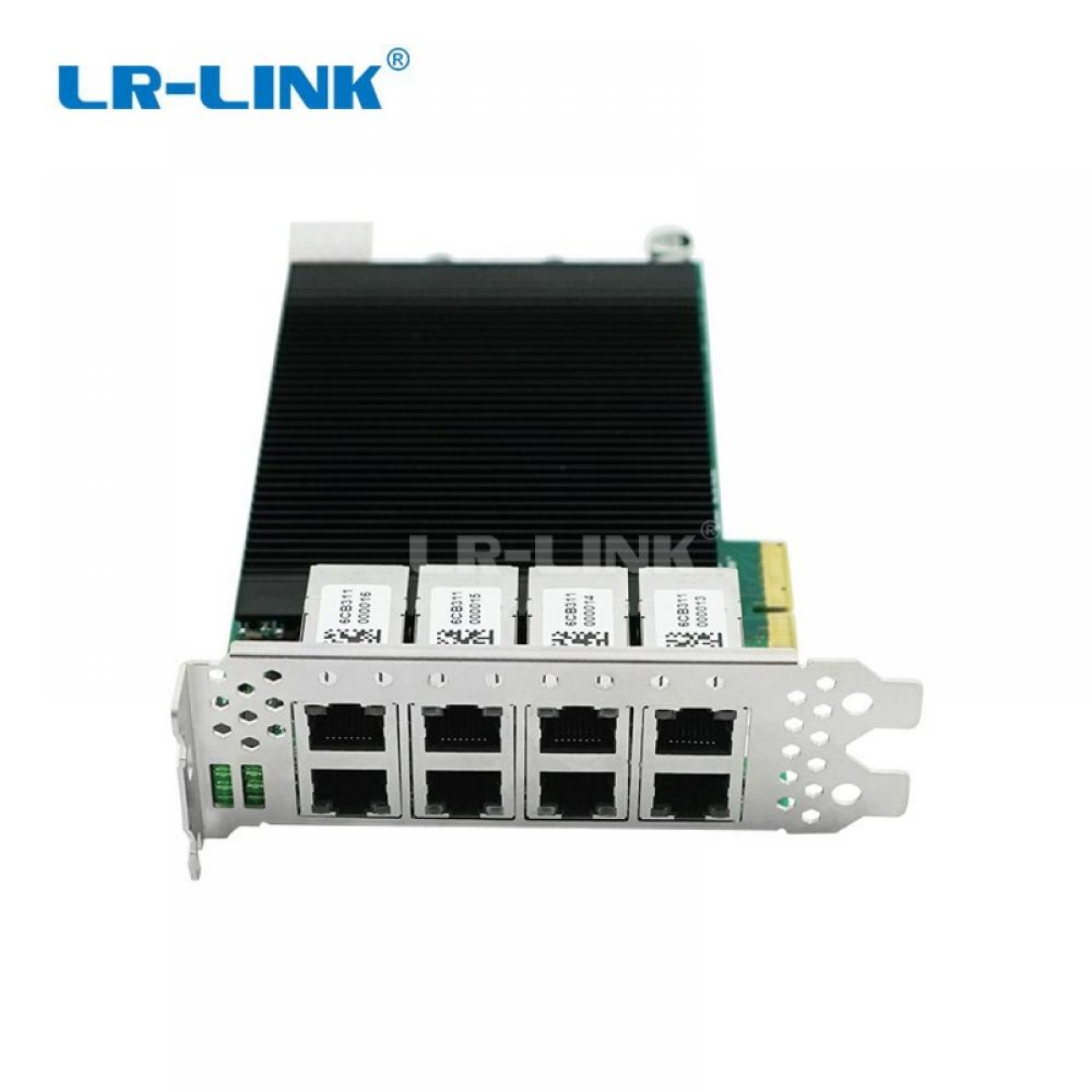

7.The design of 8 RJ45 can better save the valuable PCIe slot resources of the main board

Controller
    Intel I350

Cable medium
    Copper cable

Cable Type
    Cat 5E and Cat6 : 1000Base-T up to 100m (POE power supply min requirement Cat5)
    Cat 5/5E and Cat6 : 100Base-T up to 100m (POE power supply min requirement Cat5)

Bracket
    Full-height Bracket

Thermal design power consumption (max)
    9W

Single-port PoE output power consumption(max)
    30W

Operating system support
    Windows XP
    Windows Vista
    Windows 7
    Windows 8/8.1
    Windows 10
    Windows Server 2003 /R2
    Windows Server 2008 /R2
    Windows Server 2012 /R2
    Windows Server 2016 /R2
    Linux Stable Kernel version 2.4.x / 2.6.x / 3.x /4.x or later
    Red Hat Enterprise Linux 5 / 6 / 7 or later
    SUSE Linux Enterprise Server 10/11 or later
    VMware ESX/ESXi 4.x/5.x/6.x or later
    FreeBSD 9 / 10 or later

Connector
8 * 8-Pin RJ45
PCIe Bus Type
PCI Express v2.1 (5.0GT/s) x4, compatible with x8,x16

Rate
    10Mbps/100Mbps/1000 Mbps

Technical Features
    Ethernet Power Management    Yes

IEEE* 802.3 Automatic negotiation    Yes

IEEE Standard
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.1Q VLANs
IEEE 1588
IEEE 802.3
IEEE 802.1p
IEEE802.3x,
IEEE802.3af
IEEE802.3at

PCI-SIG* SR-IOV
Yes

Jumbo frame packet
Yes

VMDq
Yes

WOL
Yes

PXE
Yes

DPDK
Yes

iSCSI
No

FCoE
No

Operating Temperature
    0 ℃ to 55 ℃ (32 ℉ to 131 ℉)

Storage Temperature
    -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)

Storage Humidity
90% non condensing under 35℃

Certifications
FCC B, UL, CE, VCCI, BSMI, CTICK, KCC

LED Indicators    LED

1000Mbps: Link:yellow，ACT: green

100Mbps/10Mbps: ACT: green

Physical Features
    PCB Dimension(mm)    186*105*1.6
    Weight (g)    340
    Package Dimension(mm)    255*170*32
    Installation Guide    *1
    Warranty Card    *1
    Gross Weight (g)    477
