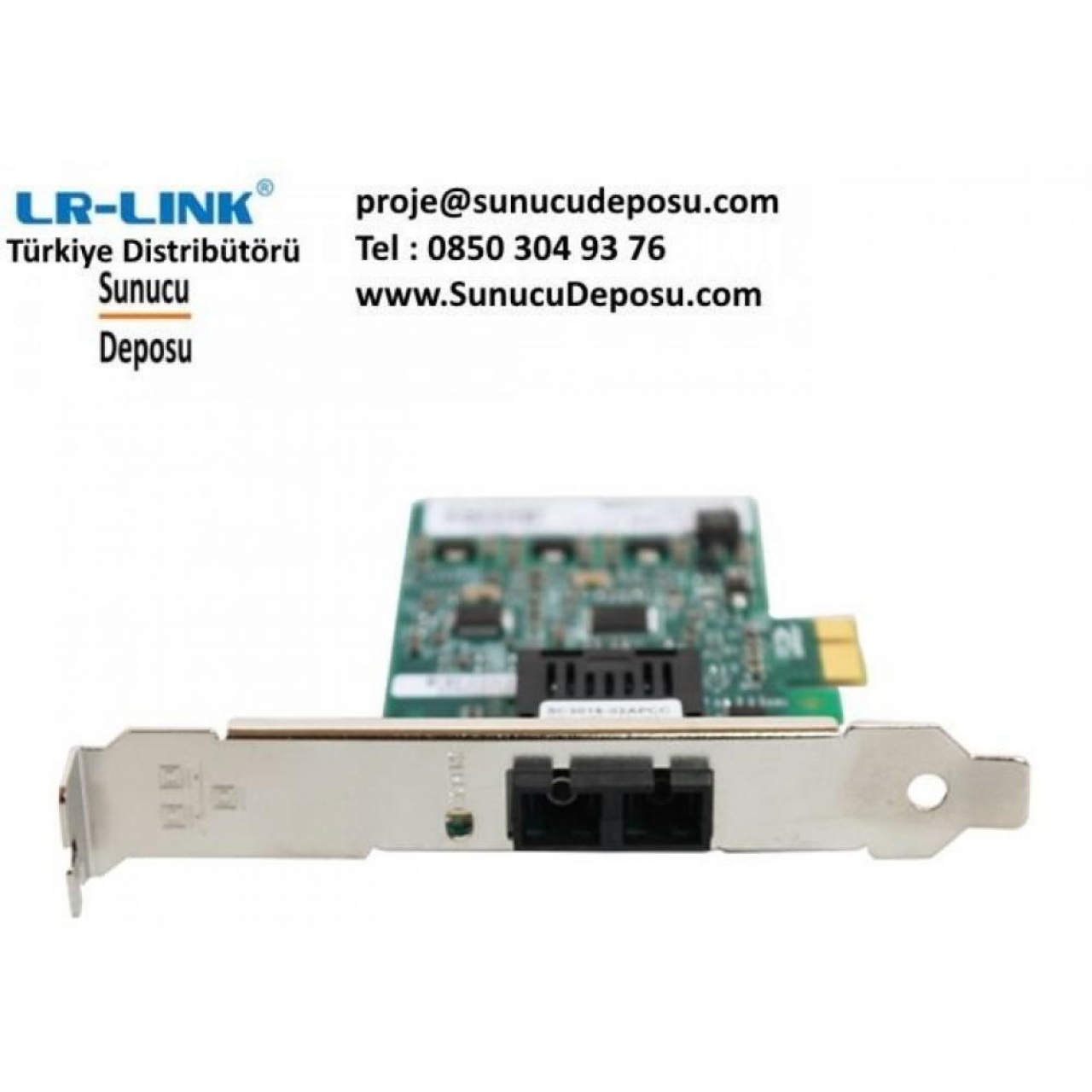

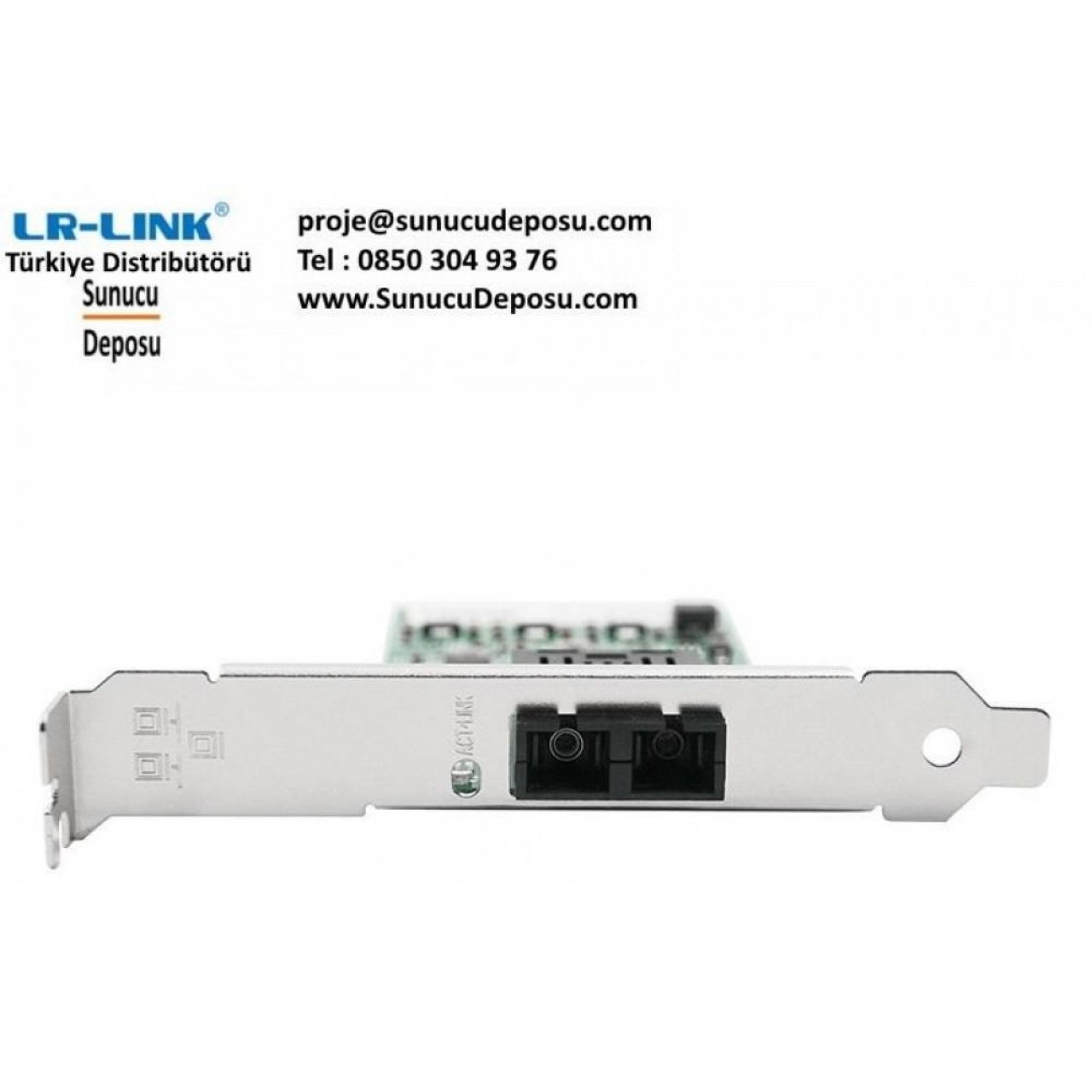

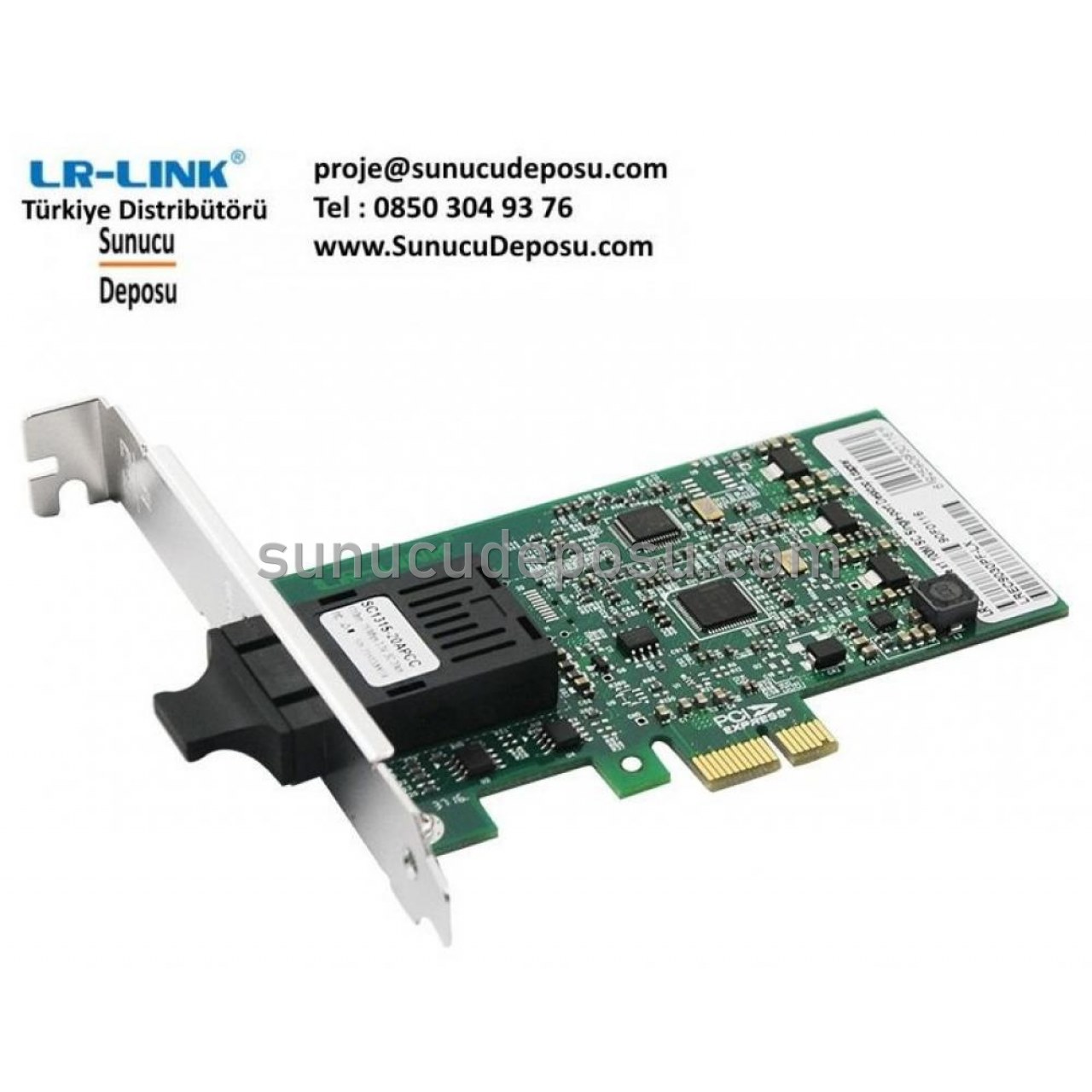

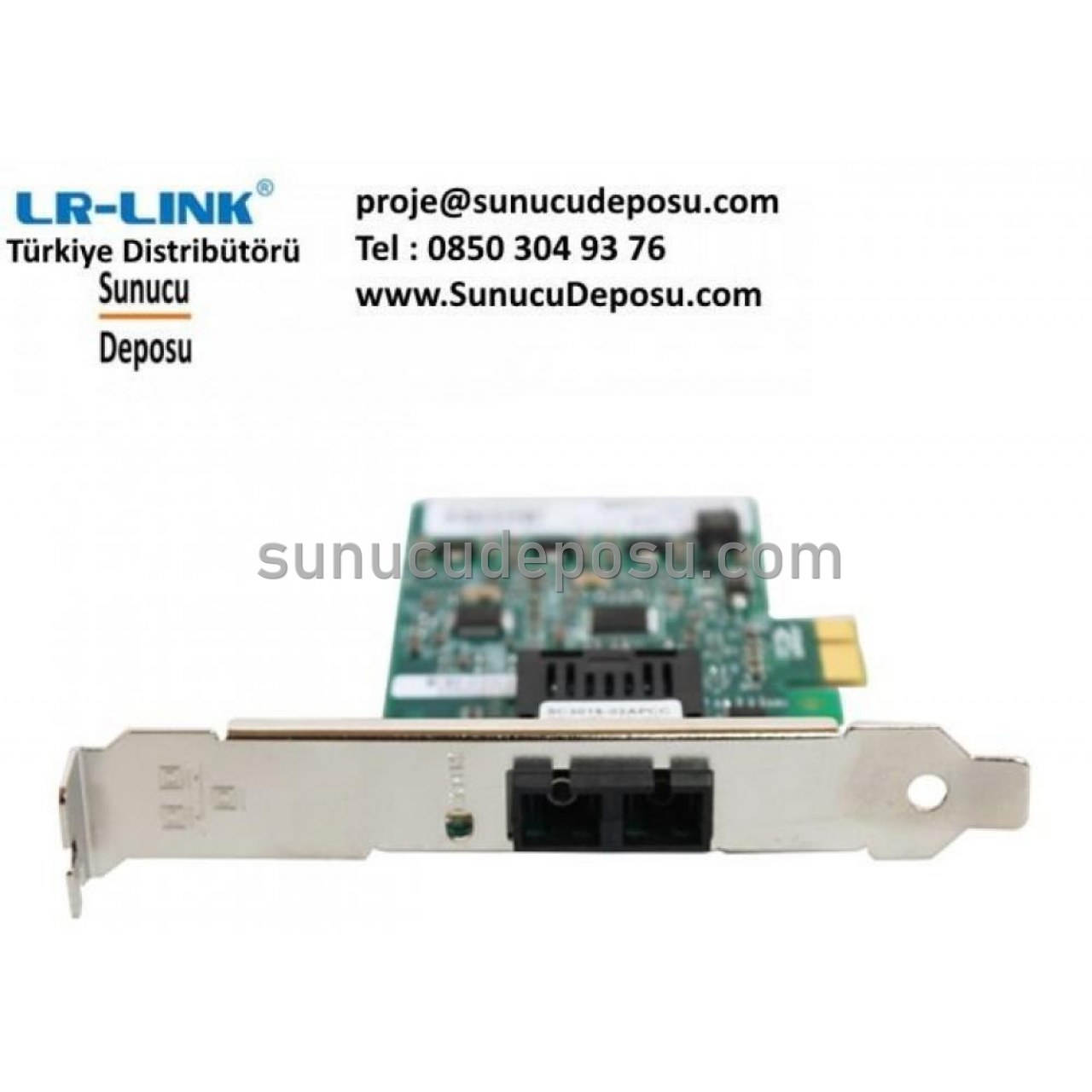

LREC9030PF
PCIe 100FX SC/ST Port Fiber NIC(Intel 82574 Based)
LR-Link Türkiye Distribütörü SunucuDeposu firmasıdır.
Key Features
Single-port 100Mbps adapter
PCI Express (PCIe) 1.1, 2.5 GT/s, x1 lane
SC Connectivity
IEEE 802.1p*, Intel(R) Priority Packet 8
Low-cost, low-power
Support PXE
MSI-X support
Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
Low Profile and full-height bracket
|
Controller
|
Intel 82574L
|
|
Transmission rate per port
|
100M
|
|
Network Standard Physical Layer Interfaces
|
100BASE-SX: 275 m at 62.5 µm; 550 m at 50 µm
|
|
100BASE-LX: 10Km at 9µm
|
|
Jumbo Frame Support
|
Up to 9.5 KB
|
|
Operating Temperature
|
0 °C to 55 °C (32 °F to131 °F)
|
|
Network Virtualization
|
VXLAN, MACinUDP, NVGRE, IPinGRE
|
|
LED Indicators OPERATION
|
Link/ACT Green Blinking:100M
|
|
Operating System Support
|
Windows Server 2016 R2/2012 R2/2012/2008 R2
|
|
Windows 7 x64/8/8.1/10
|
|
Linux Stable Kernel version 2.6.32/3.x/4.x orlater
|
|
VMvare ESX/ESXi 5.5/6.x orlater
|
