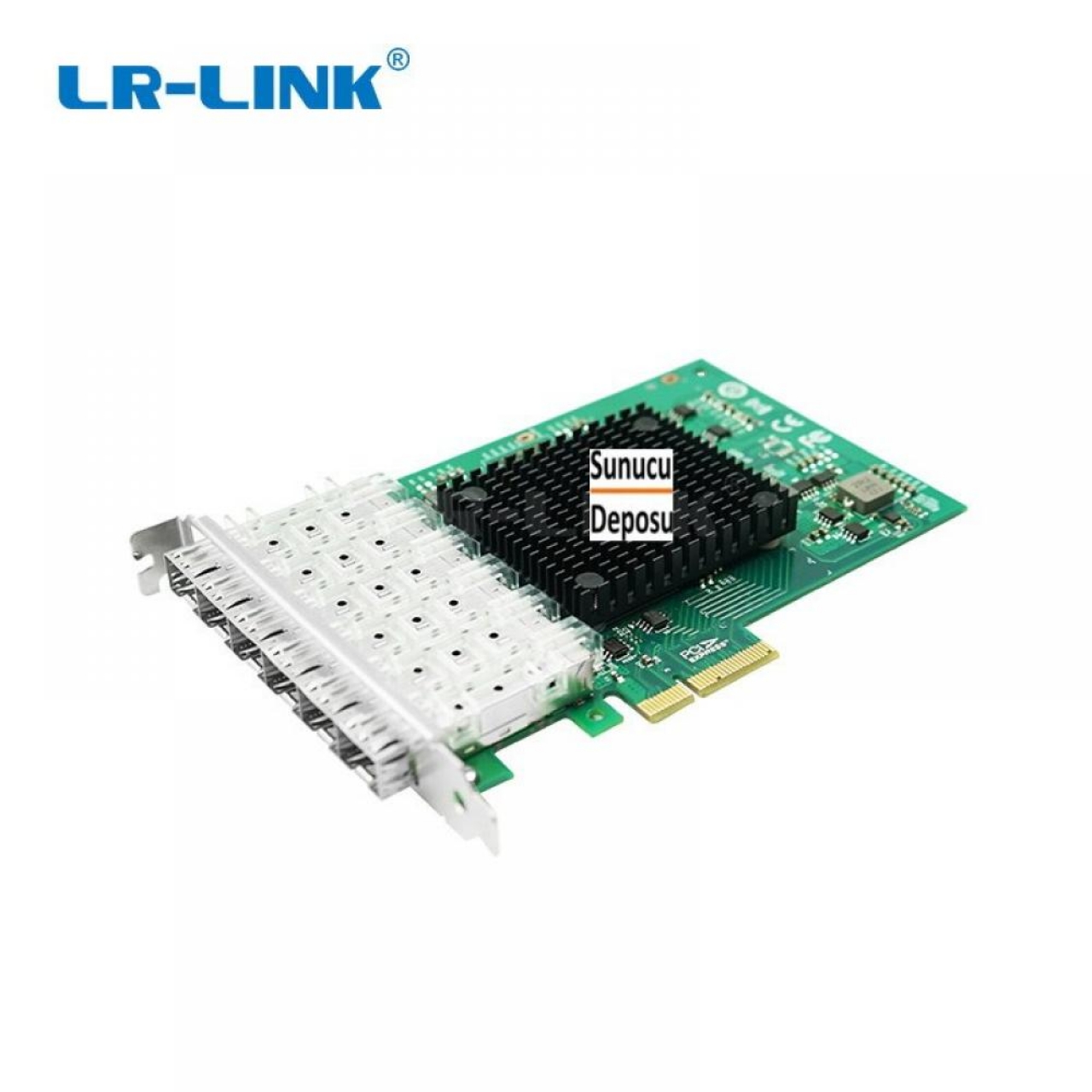

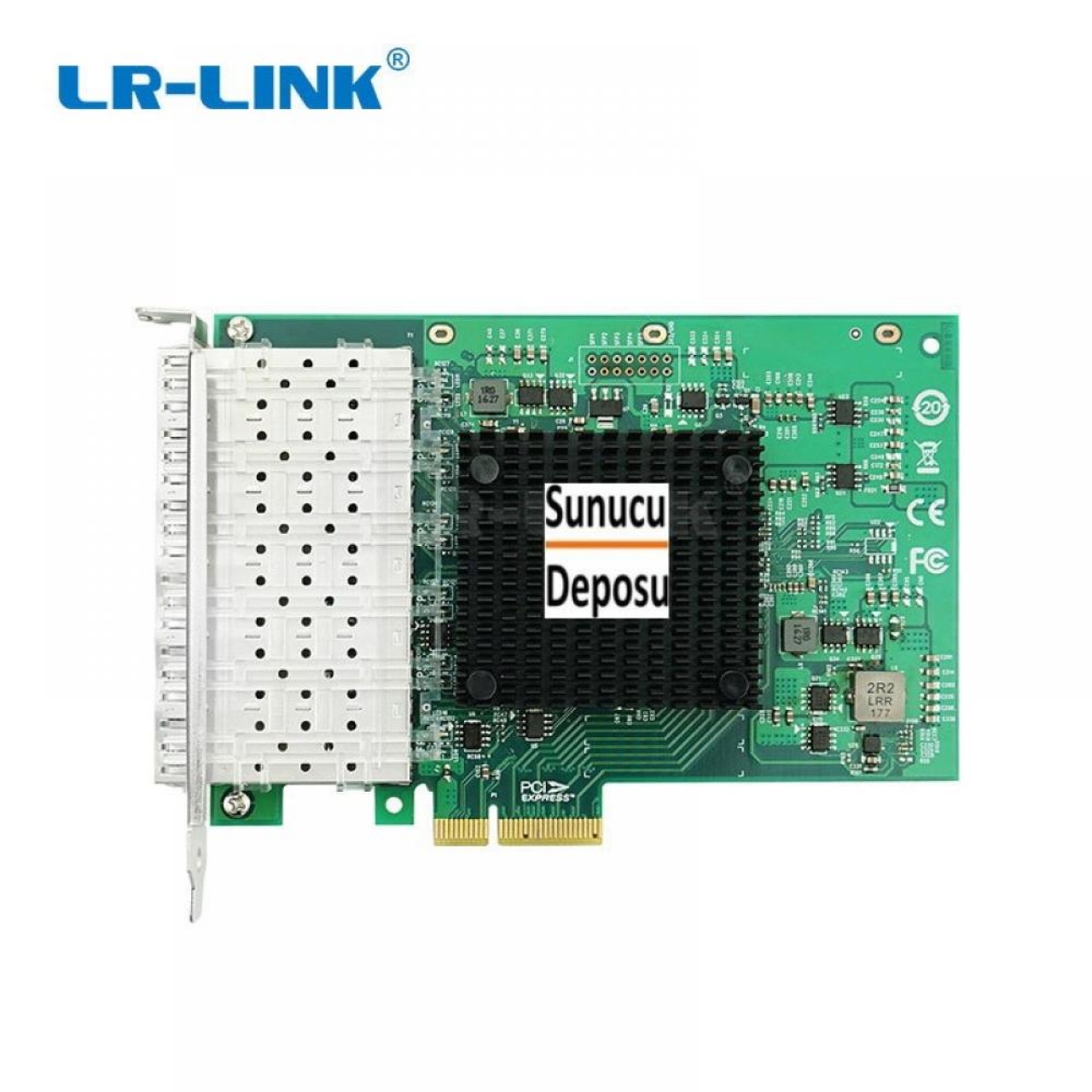

LR-Link LRES1006PF-6SFP Intel I350 Chipset 1Gbps PCIe x4 6 port Server Adapter ( 6 x SFP)

Specifications

Controller

Intel(R) I350

Cable

1G SFP / AOC/ DAC

Cable Type

1000Base-SX/1000Base-LX/1000Base-T

Bracket

Full-height Bracket

Power(max)

3.6W

Operating System Support

Windows 10

Windows 8/8.1

Windows 7

Windows Vista

Windows XP

Windows Server 2019 /R2

Windows Server 2016 /R2

Windows Server 2012 /R2

Windows Server 2008 /R2

Windows Server 2003 /R2

Linux kernel 2.4.x/2.6.x/3.x/4.x or later

FreeBSD 7.x or later

UnixWare / Open Unix 8

Sun Solaris 9/10/11 or later

VMware ESX/ESXI 5.x/6.x or later

Connector

6 * 1G SFP

PCIe

PCI Express v2.1 (2.5GT/s & 5.0GT/s) x4；compatible x8、x16

Speed

1000Mbps

Power Supply

PCIe

Technical Parameters

Ethernet Power Management

Yes

IEEE Standard

IEEE 802.3z 1000BASE-X Gbit/s Ethernet

IEEE 802.3x Full Duplex and flow control
IEEE 802.3az Energy Efficient Ethernet

IEEE 802.3ad Link aggregation for parallel links

IEEE 802.1Q VLAN

PXE

Yes

DPDK

Yes

Jumbo Frame

Yes

iSCSI

Yes

WOLE

No

FCoE

No

Environment Features

Operating Temperature

0℃ to 55℃(32℉ to 131℉)

Storage Temperature

-40℃to 70℃ (-40℉ to 158℉)

Storage Humidity

90% non condensing under 35℃

Certificate

FCC A, UL, CE, VCCI, BSMI, CTICK, KCC

LED Indicator

LED Indicator

1000Mbps: Green Link，Yellow Blink

Driver

Windows

Intel(R) I350 Gigabit Fiber Network Connection

Linux

Intel Corporation I350 Gigabit Fiber Network Connection (rev 01)

Physical Features

PCB size(mm)

165*68*1.6

Weight(g)

112
