LR-Link Türkiye Distribütörü SUNUCUDEPOSU firmasıdır.

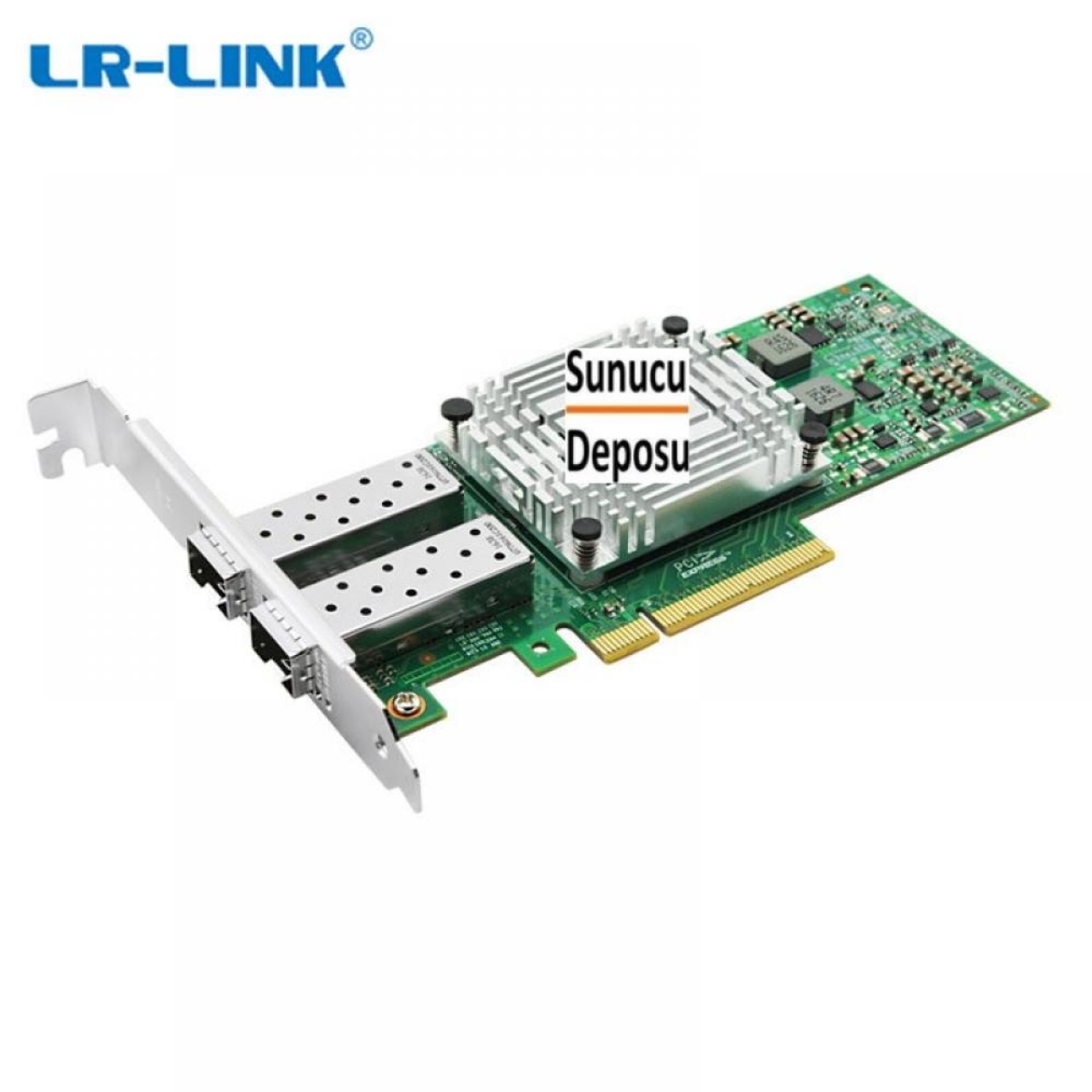

LREC9812BF-2SFP+
PCI Express v3.0 x8 10Gigabit Dual-port Ethernet Server Adapter Intel X710 Based (2 x SFP+)
Key Features
Dual-port 10GbE server adapters
PCI Express (PCIe) v3.0, 8.0 GT/s, x8 lanes
SFP+ Connectivity
PXE,iSCSI boot
Exceptional Low Power Adapters
IEEE 802.3ad and 10G Ethernet specification compliance
Data Plane Development Kit (DPDK) support
Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
Low Profile and Full Height Bracket
|
Controller
|
Intel X710
|
|
Transmission rate per port
|
10GbE
|
|
Network Standard Physical Layer Interfaces
|
10GBASE-SR (LRXP8510-X3ATL)
|
|
10GBASE-LR (LRXP1310-10ATL)
|
|
SFF-8431: 10GSFP+ DAC (Direct Attach Copper)
|
|
Jumbo Frame Support
|
Up to 9.5 KB
|
|
Operating Temperature
|
0 °C to 50 °C (32 °F to 122 °F)
|
|
Network Virtualization
|
VLAN,VLAN tag, VXLAN, NVGRE, GENEVE,VLMB
|
|
LED Indicators OPERATION
|
Link Green:10Gb/s, Link Yellow: 1Gb/s
|
|
Power supply
|
PCI Express +12V±8%, +3.3V±8%
|
|
Operating System Support
|
Windows Server 2012 R2/2012 R2 core/2012/2012 core/2008 R2/2008 R2 core
|
|
Windows 7 x64/8/8.1/10
|
|
Linux Stable Kernel version 2.4.x / 2.6.x / 3.x / 4.x or later
|
