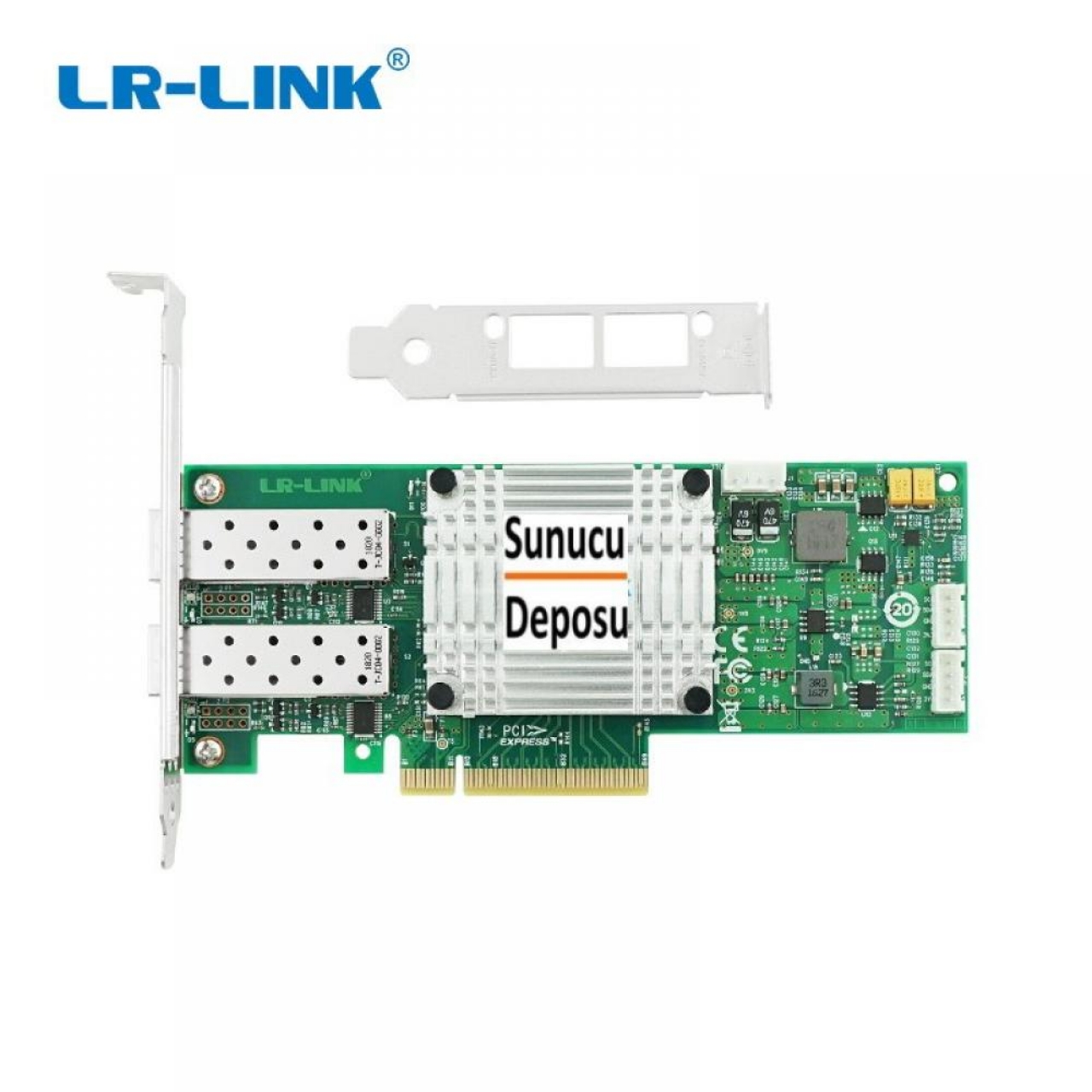

LRES1002PF-2SFP+ LR-Link China-Made Chipset PCI Express x8 Dual Port SFP+ 10G Server Adapter (Netswift SP1000A Based)

Specifications

Controller

Netswift SP1000A

Cable

Fiber

Cable Type

10GBase-SR,10GBase-LR,10GBase-ER,

10GBase-ZR,10GBase-LRM,10GBase-Cu

Bracket

Low Profile and Full-height Bracket

Power(max)

7.6W

Operating System Support

Windows Server 2016 R2

Windows Server 2012 R2

Windows Server 2012

Windows Server 2008 R2

Windows 10

Windows 8/8.1

Windows 7 x64

Linux Stable Kernel version 2.6.x / 3.x / 4.x or later

CentOS / Red Hat Enterprise Linux 6.8 / 7.x or later

Ubuntu  16.04/16.10/17.04/17.10/18.04 or later

FreeBSD 10.3 / 11 or later

Linux SLES 12 SP2 or later

Vmware ESX/ESXi 6.0/ 6.5 or later

Connector

2 * SFP+

PCIe

PCI Express v3.0 (8.0GT/s) x8,compatible x16

Speed

10GbE

Technical Parameters

Ethernet Power Management

Yes

Transmission Rate

10GbE

IEEE Standard

IEEE 802.3ae 10GBase-SR,10GBase-LR,10GBase-ER,10GBase-ZR
IEEE 802.3aq 10GBase-LRM

IEEE 802.1Qbg Virtual Bridging

IEEE 802.1Qbb Priority Flow Control

IEEE 802.1Qaz Enhanced Transmission Selection

IEEE 802.1Qau

PXE

Yes

iSCSI

Yes

SR-IOV

Yes

IPsec

Yes

IPv4、IPv6

Yes

RSS

Yes

Jumbo Frame

9.5K

RSC、TSO Offload

Yes

Network virtualization support

VXLAN,geneve,NVGRE

Environment Features

Operating Temperature

-25 ℃ to 70 ℃ (-13 ℉ to 158 ℉)

Storage Temperature

-40 ℃ to 85 ℃ (-40 ℉ to 185 ℉)

Storage Humidity

90% non condensing under 35℃

Certificate

FCC Class A

LED Indicator

Green Link + Green Blink

Physical Features

Size(mm)

162*68.8*1.6

Weight（g）

127

Packing detail

Package box（mm）

224*147*30

2U bracket

*1

Install book

*1

Warranty

*2 years

G.W.（g）

210
