LREC9260PF-SFP

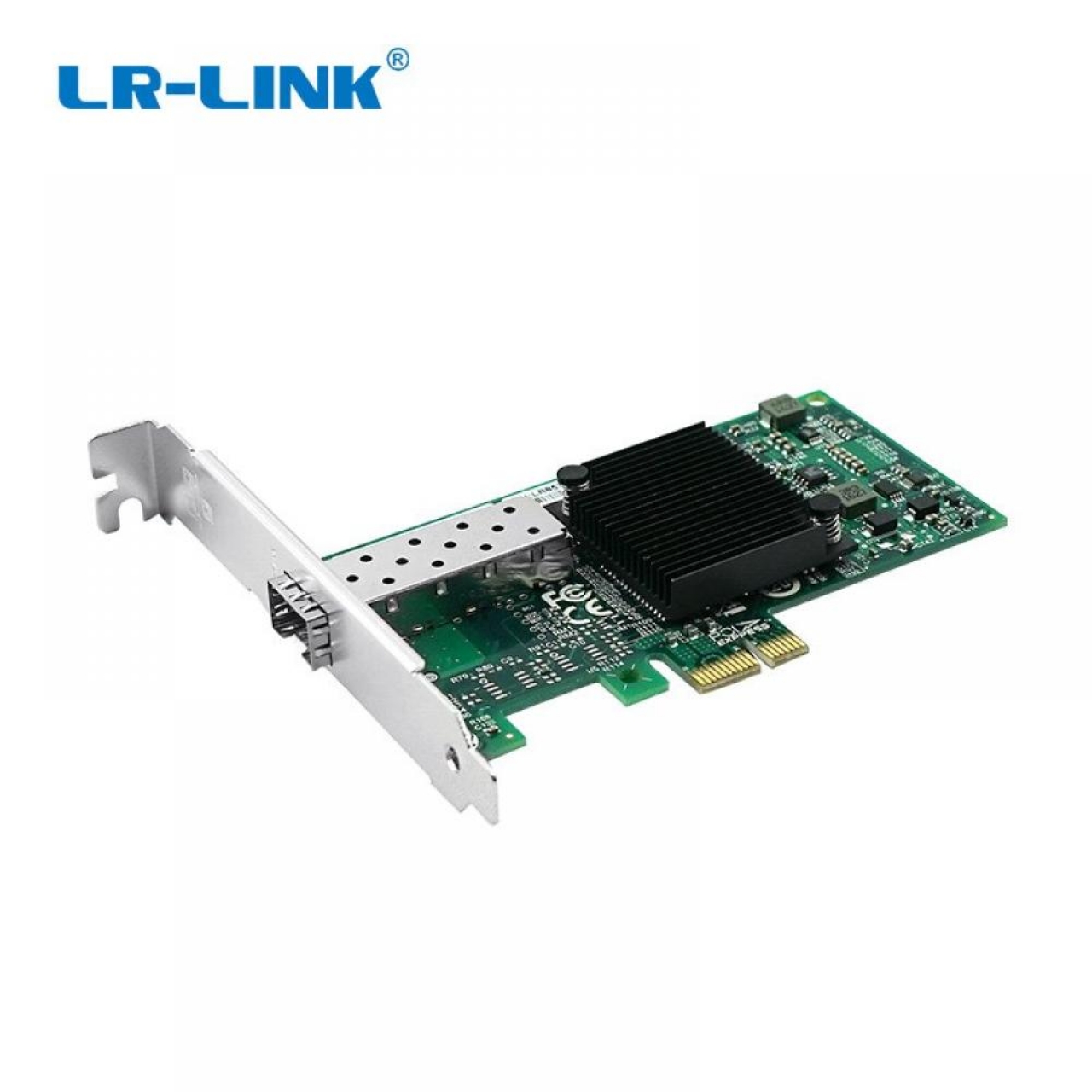

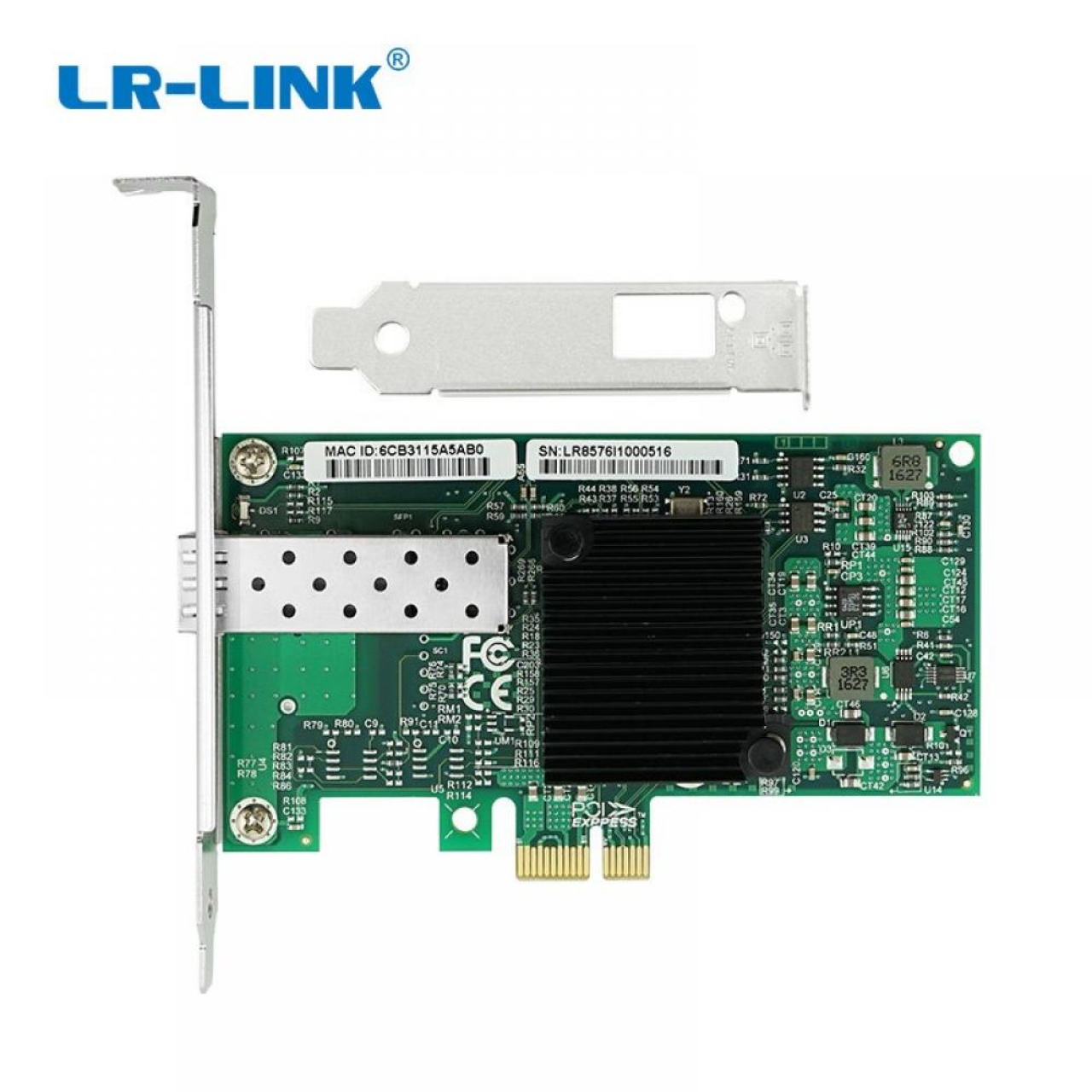

PCIe x1 Gigabit SFP Fiber Ethernet Adapter (Intel 82576 Based)
Key Features
Single-port 1000Mbps adapter
PCI Express (PCIe) 2.0, 2.5 GT/s, x1 lane
SFP LC Connectivity
Network Virtualization
ISCSI remote boot support
Load balancing on multiple CPUs
Support for most network operating systems(NOS)
Simple Network Management Protocol(SNMP) and Remote Network Monitoring(RMON) Statistic Counters
Low profile and full -height Bracket
|
Controller
|
Intel82576EB
|
|
Transmission rate per port
|
1000Mbps
|
|
Network Standard Physical Layer Interfaces
|
1000BASE-SX: 275 m at 62.5 µm; 550 m at 50 µm
|
|
1000BASE-LX:20Km at 9µm
|
|
Jumbo Frame Support
|
Up to 9.5 KB
|
|
Operating Temperature
|
0 °C to 55 °C (32 °F to 131 °F)
|
|
Network Virtualization
|
VXLAN, MACinUDP, NVGRE, IPinGRE
|
|
LED Indicators OPERATION
|
1000Mbps/s:Link Green constant, ATC Yellow blink
|
|
Power supply
|
PCI Express +12V±8% /+3.3V±9%
|
|
OperatingSystem Support
|
Windows Server2016/ 2012 R2/2008 R2/2008/2003
|
|
Windows2000/XP/Vista/7/8/8.1/10
|
|
Linux Stable Kernel version 2.6.30
|
|
Vmware ESXi 5.x/6.x
|
