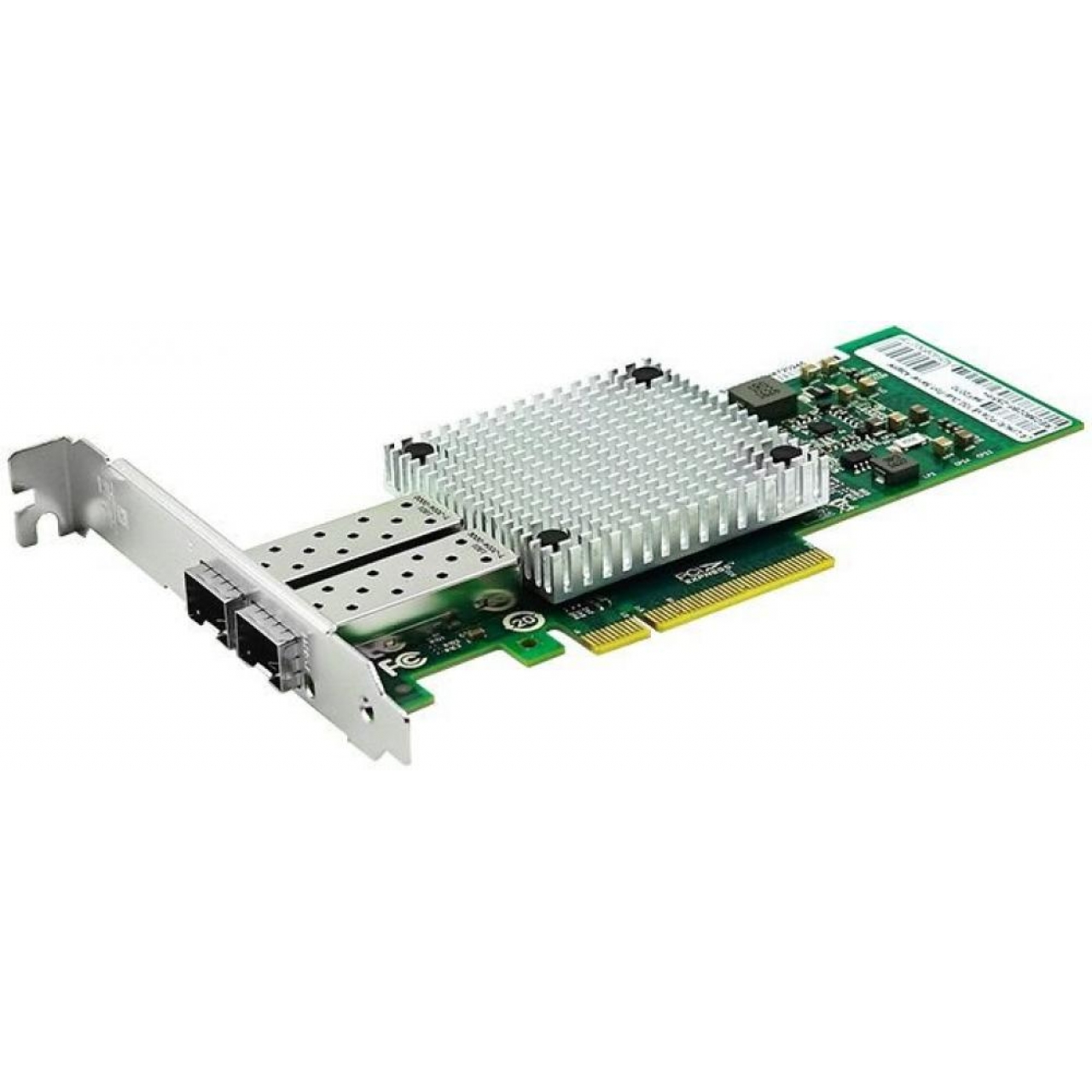

LREC9802BF-2SFP+ LR-Link 10Gbe PCI-E x8 Dual SFP+ Fiber Sunucu Tip Ethernet Intel 82599ES

LREC9802BF-2SFP+ LR-Link

LR-Link Türkiye Distribütörü SunucuDeposu firmasıdır

10Gbps 10Gbe PCI-E x8 Dual SFP+ Fiber NIC Server Adapter NIC(Intel 82599ES Based)

Key Features

Dual Port 10GbE Adapters
PCI Express (PCIe) v2.0, 5.0 GT/s, x8 lanes
Industry standard SFP+ fiber port
PXE,iSCSI boot
Network Virtualization
Support IEEE 802.1Q VLAN
Low profile and full-height bracket

Controller
    Intel 82599EN/ES

Transmission rate per port
    10GbE

Network Standard Physical Layer Interfaces
    10GBASE-SR, 10GBASE-LR,10G SFP+ Coppe,
    10G SFP+ DAC, 10G SFP+ AOC

Operating Temperature
    0°C to55 °C (32 °F to 131°F)

Network Virtualization
    FCoe, DPDK

LED Indicators OPERATION
    Link/Activity  LED: off = No Link; on = Link;GreenBlinking = Activity

Power supply
    PCI Express +12V±8%, +3.3V±9%

Operating System Support
    Windows Server 2012 R2/2012 /2008 R2/2008/2003/10/8.1/8/7
    Linux kernel 2.6.30 or greater (x86_64) (w/ SR-IOV support) /FreeBSD 7.2 or laster
    Linux RHEL 5.6/6.x /SLES 11 SP1/SLES 10 SP4 /OS Independent
    DOS NDIS 2/ODI / EFI 1.1/UEFI 2.1/ VMware® Workstation/Vmware ESX 4.02
