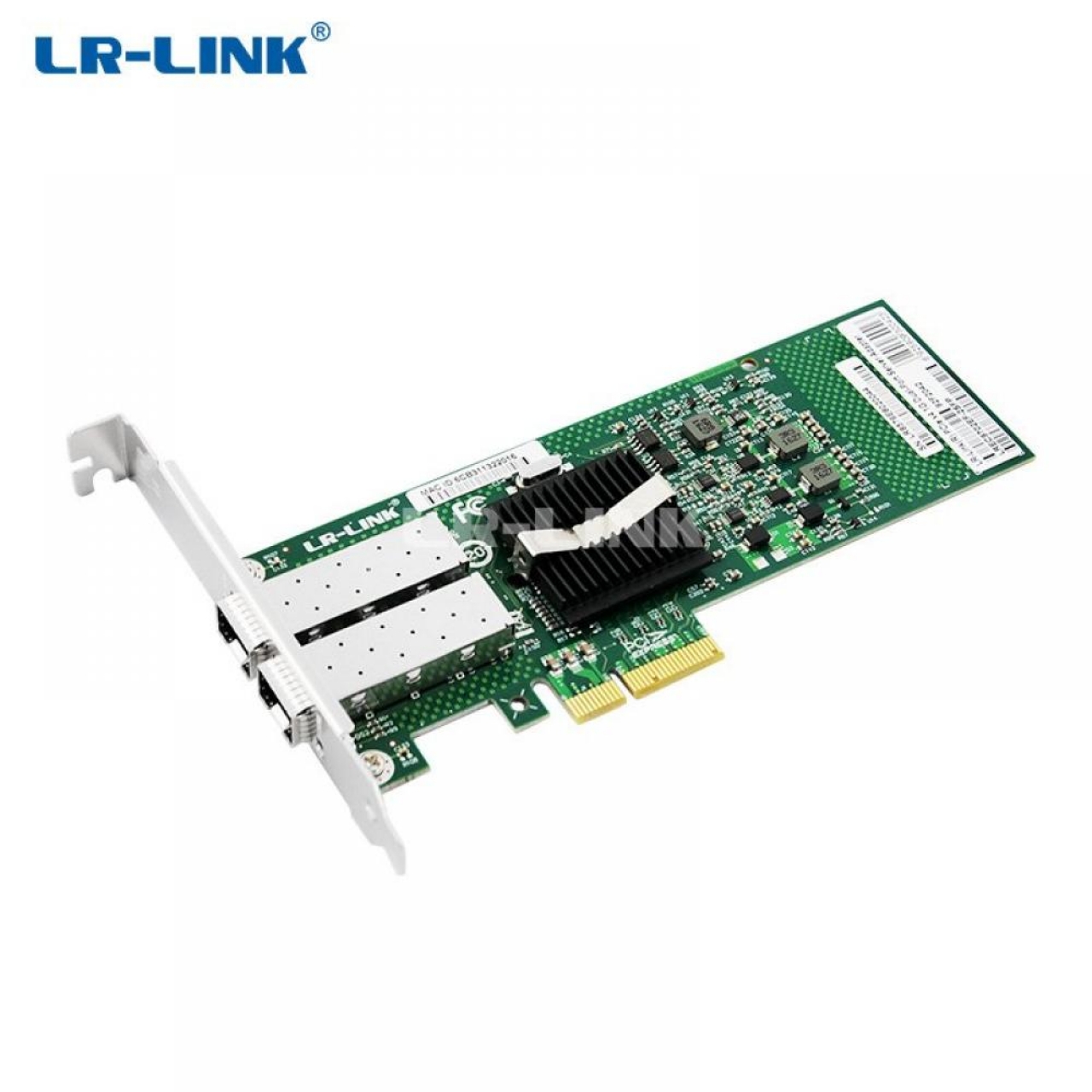

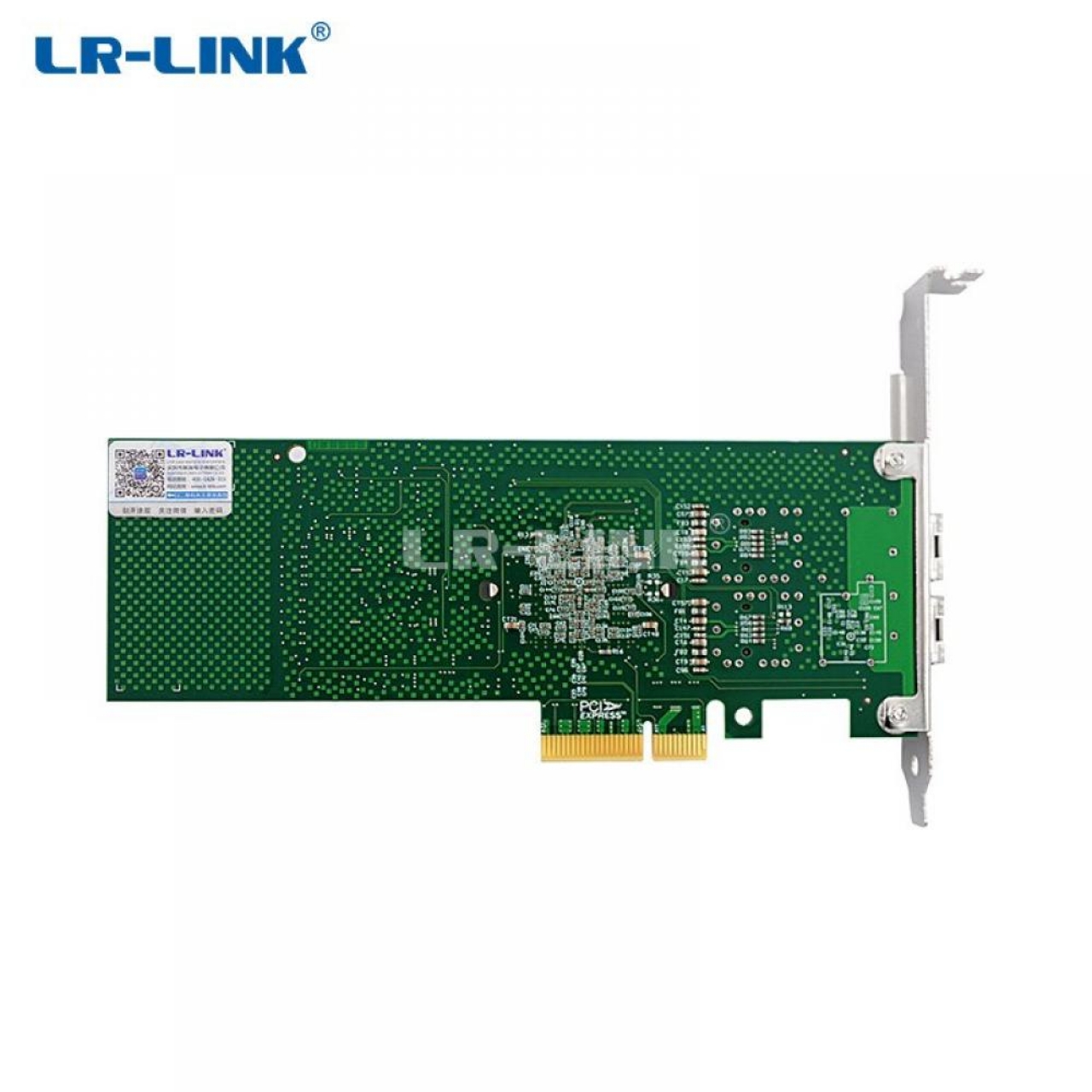

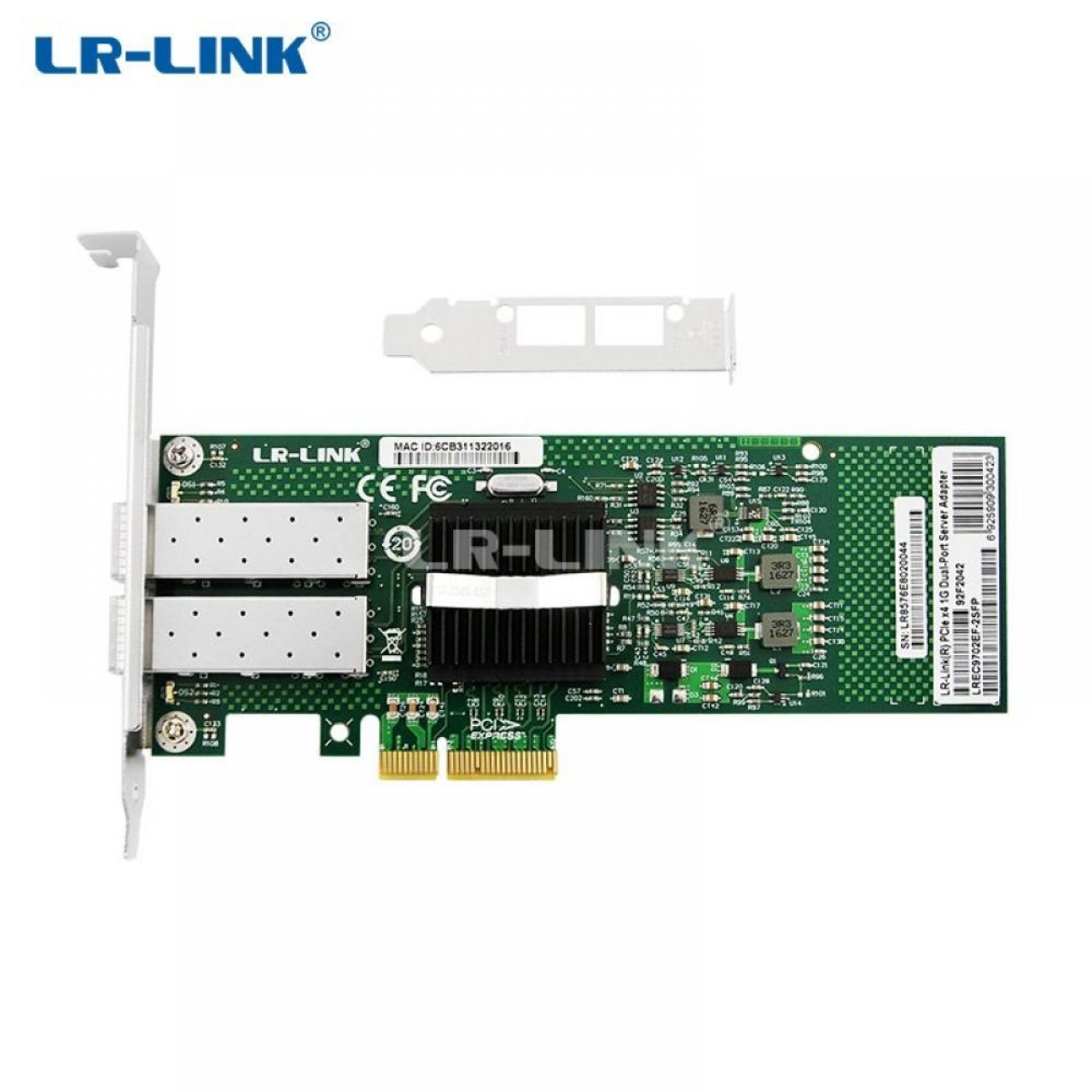

LREC9702EF-2SFP 2 Port SFP Intel 82576 1Gbe Sunucu Tip Ethernet Kart

LREC9702EF-2SFP

Intel 82576 Based PCIe X4 1000Mbps 1G 2 SFP Port Server Ethernet Adapte( 2 x SFP)

Genel Özellikler

Intel 82576 Gigabit Ethernet Controller
Low-profile
iSCSI remote boot support
Load balancing on multiple CPUs
Compatible with x4, x8, and x16 standard and low-profile PCI Express slots
Multi-port design
Support for most network operating systems (NOS)
Intel PROSet Utility for Windows Device Manager

Datasheet:

Controller
    Intel 82576

Transmission rate per port
    1 GbE

Network Standard Physical Layer Interfaces
    1000BASE-SX: 275 m at 62.5 µm; 550 m at 50 µm

    1000BASE-LX: 10Km at 9µm

Jumbo Frame Support
    Up to 9.5 KB

Operating Temperature
    0 °C to 55 °C (32 °F to 131 °F)

Network Virtualization
    VLAN, VEPA

LED Indicators OPERATION
    Link LED:Green; ACT LED:Yellow

Power supply
    PCI Express +3.3V±9%

Operating System Support
    Windows Server 2016 R2/2012 R2/2012/2008 R2/2008/2003 R2/2003
    WindowsXP/Vista/7/8/8.1/10
    Linux Kernel version 2.6.x/3.x/4.x orlater  FreeBSD 7.x  UnixWare / Open Unix 8
    VMware ESX/ESXi 5.x/6.x orlater Sun Solaris 9/10/11
