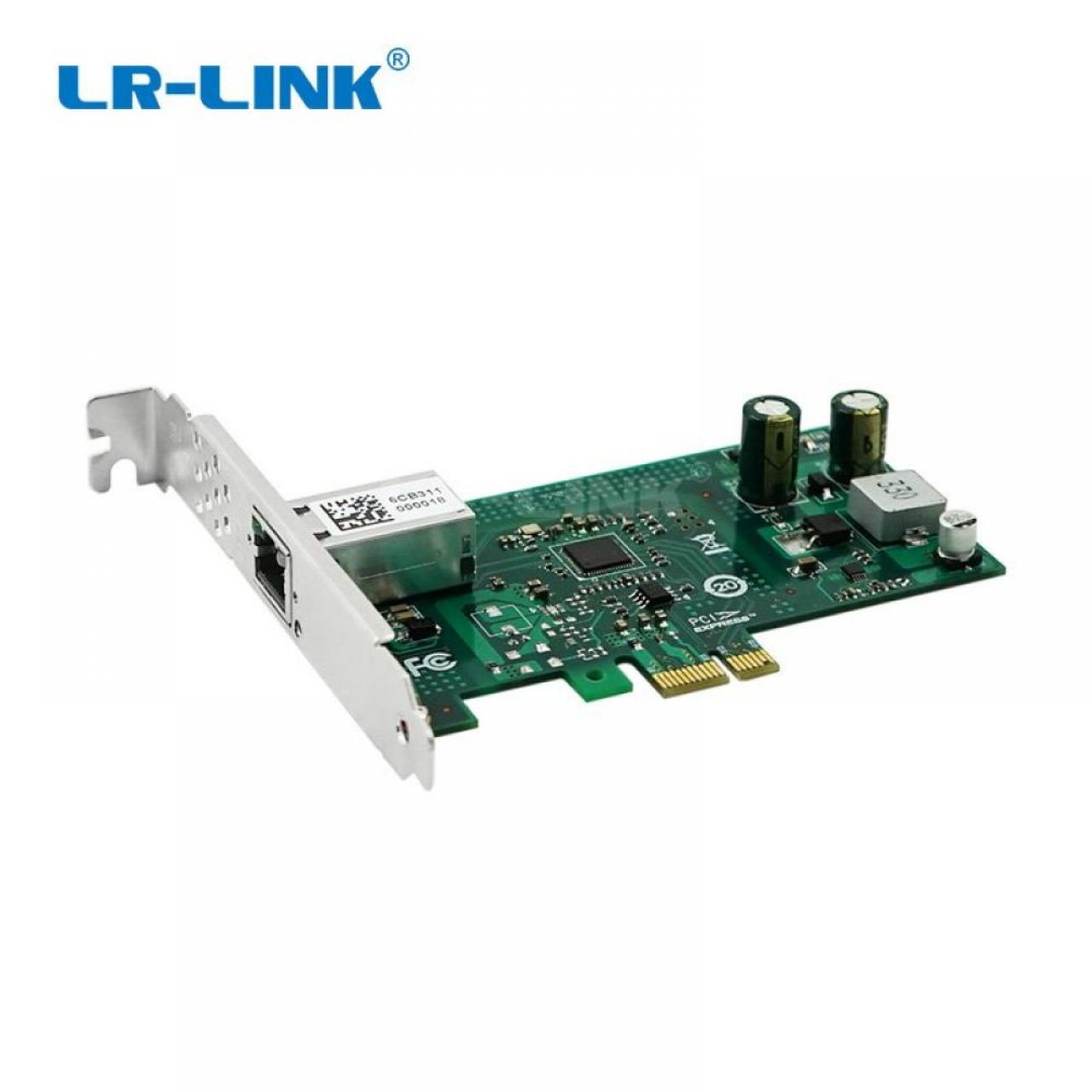

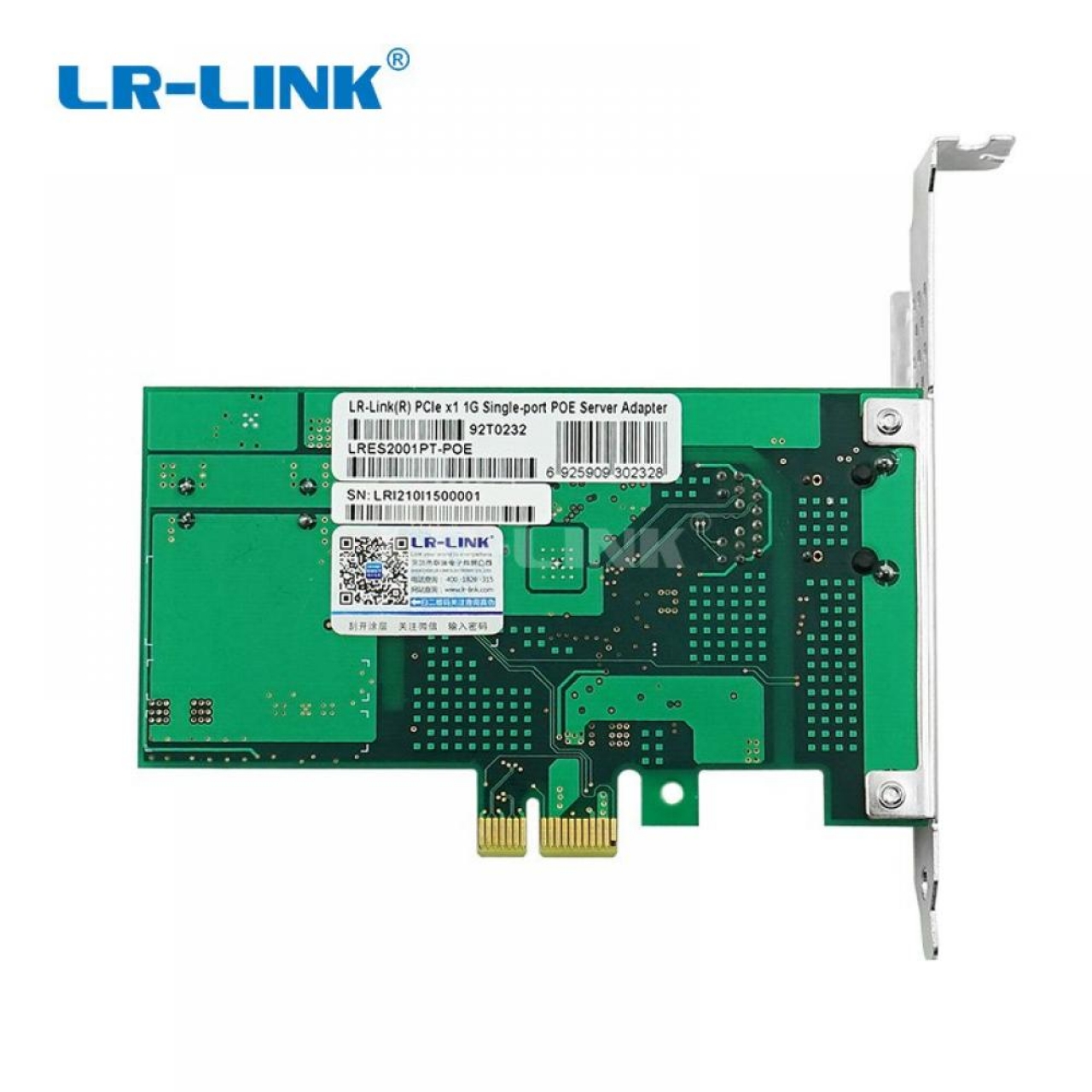

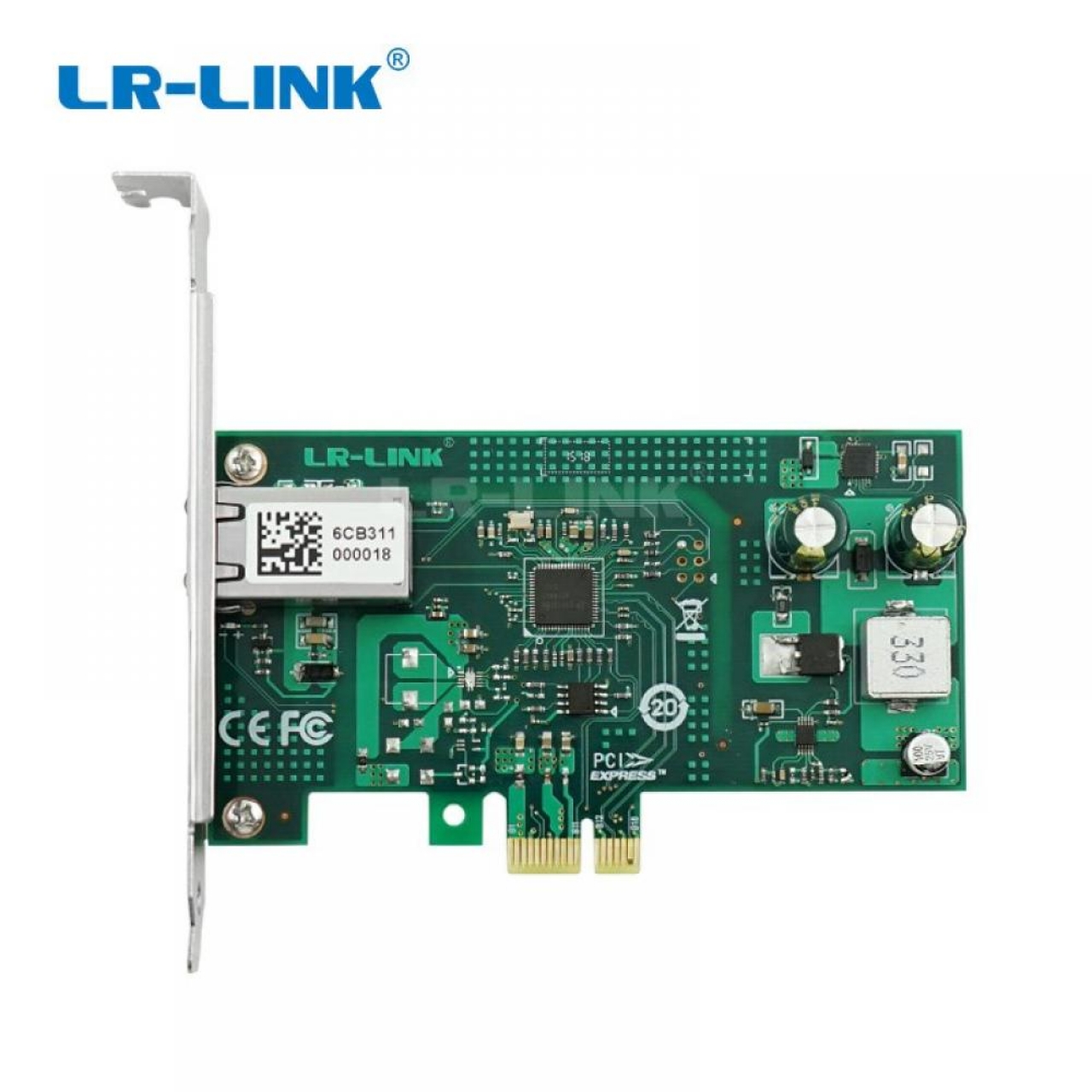

LRES2001PT-POE
PCI Express x1 Single Port 802.3at PoE+ Gigabit Vision Frame Grabber Card (Based on Intel I210)
Key Features
• Single Port 10/100/1000Mbps Adapter
• PCI Express (PCIe) v2.1(2.5 GT/s) x1 lanes
• Single-port PoE output power consumption up to 30W
• Supports PCI-Express +12V input
• Powered Device (PD) auto detection and classification per PoE+ port
• Support 802.3at and IEEE 802.3af
• Selected RJ45 connector with thickened gold to ensure more reliable connection

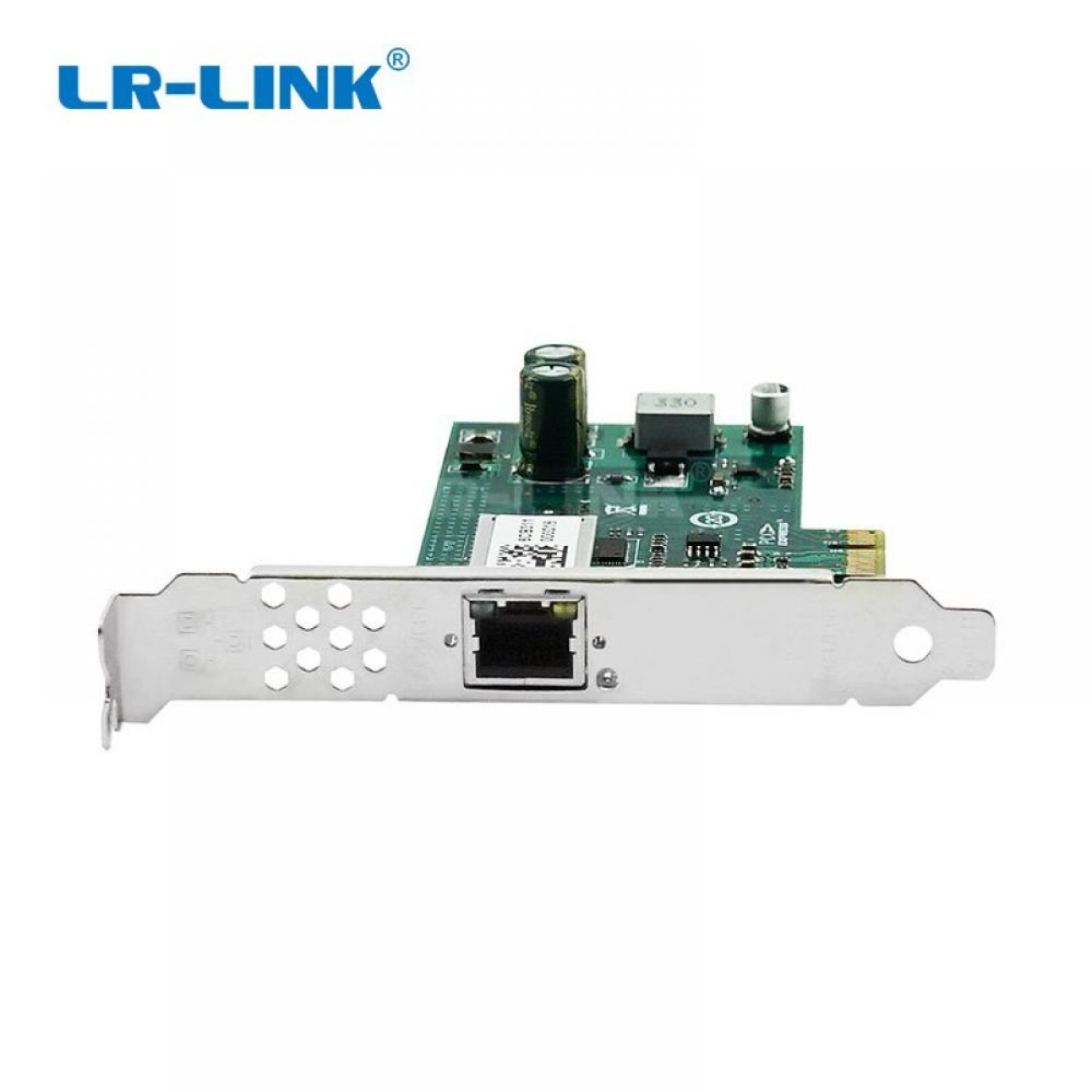

• Low profile and full-height bracket
• special screw lock to make sure the connection more stable
Datasheet:
|
Controller |
Intel I210 |
|
Transmission Rate Per Port |
10/100/1000 Mbps |
|
Network Standard Physical Layer Interfaces |
1000BASE-T:Cat 5eor higherup to 100m |
|
100BASE-Tx:Cat5e/6or higherup to 100m |
|
|
Jumbo Frame Support |
Up to 9.5 KB |
|
Operating Temperature |
0 °C to 55°C (32 °F to 131°F) |
|
Boot Option and Virtualization |
PXE support, Intel® VT-c |
|
LED Indicators |
1000Mbps/s:Yellow Link and Green Ack, |
|
100Mbps/s:Green Link and Green Ack |
|
|
POE Output |
Supports PoE+ ports up to 30W at 48V DC |
|
Operating System Support |
Windows Server2008 /2008 R2 / 2012 /2012 R2 /2016 R2 |
|
Windows7 / 8 / 8.1 / 10 |
|
|
FreeBSD 9 /10or later |
|
|
Linux Stable Kernel version 2.6.x/ 3.x/ 4.xor later |
|
|
VMwareESX/ESXi5.x/6.xor later |
