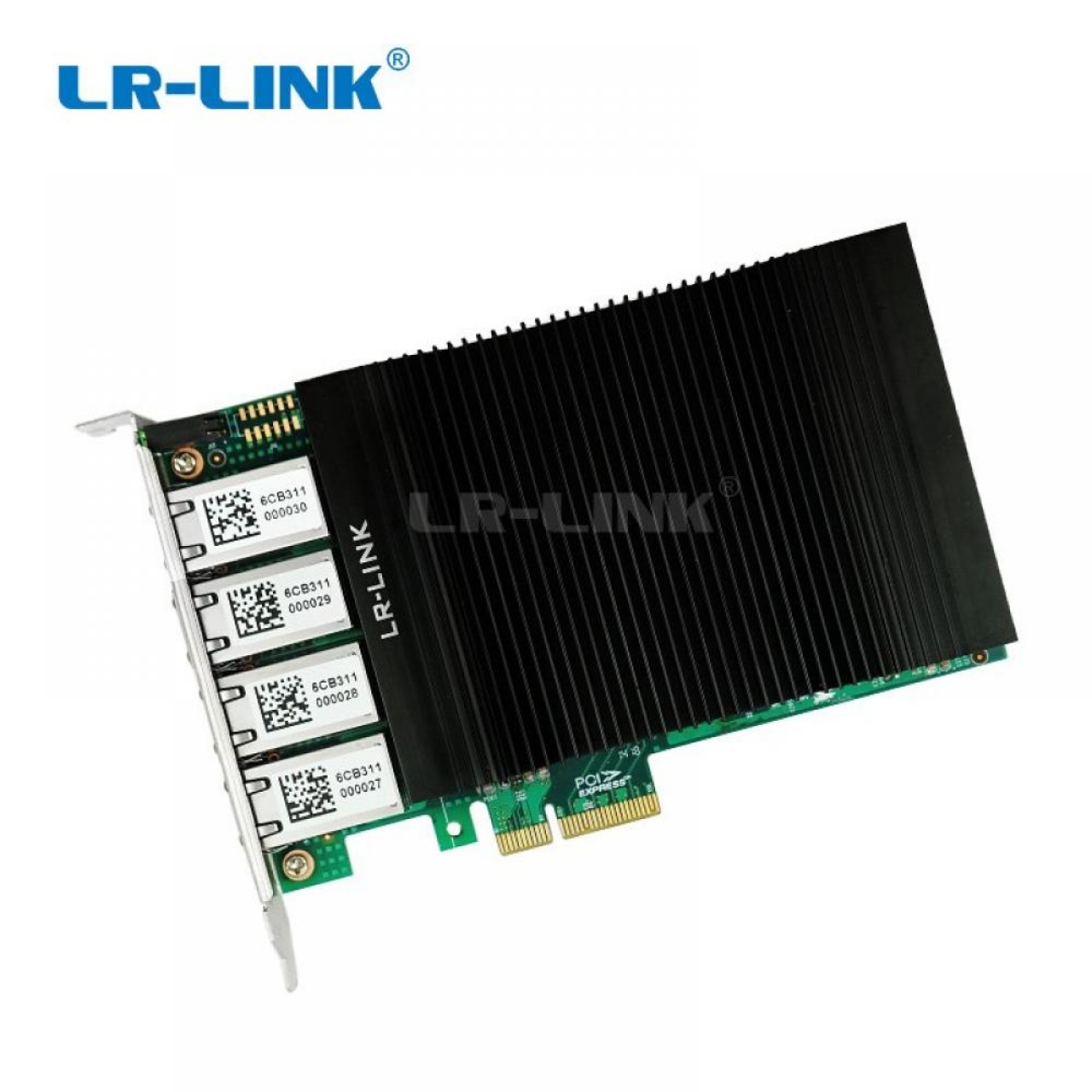

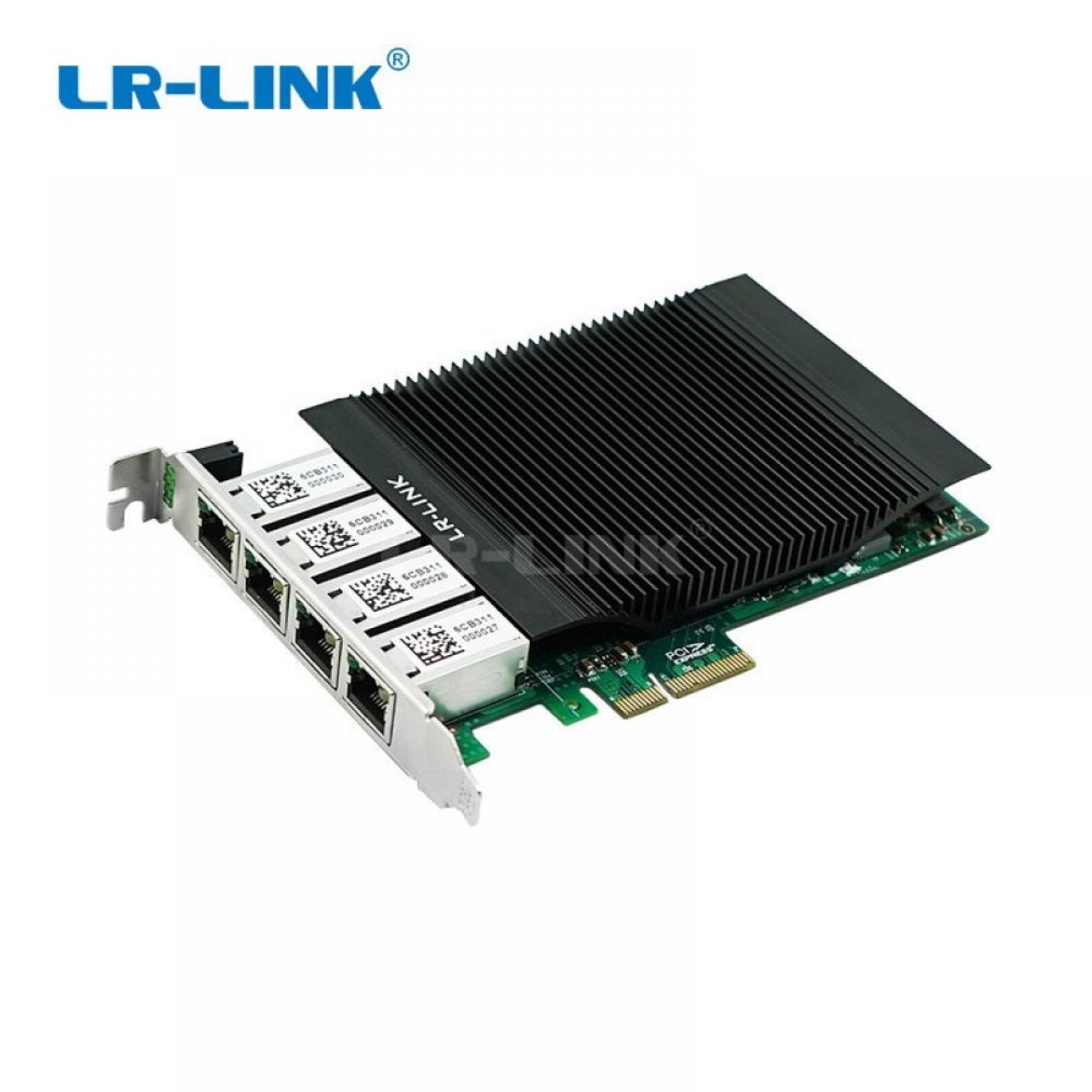

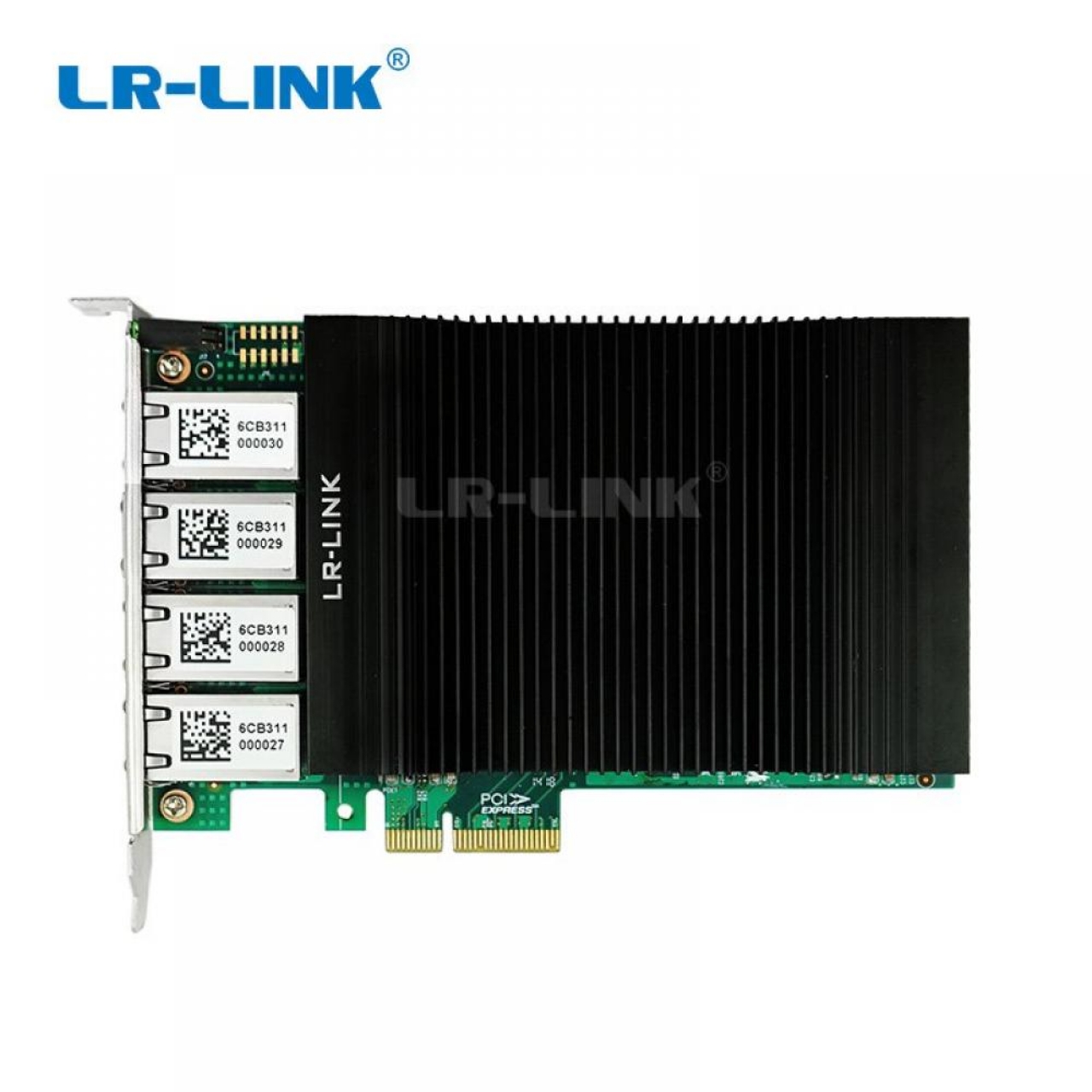

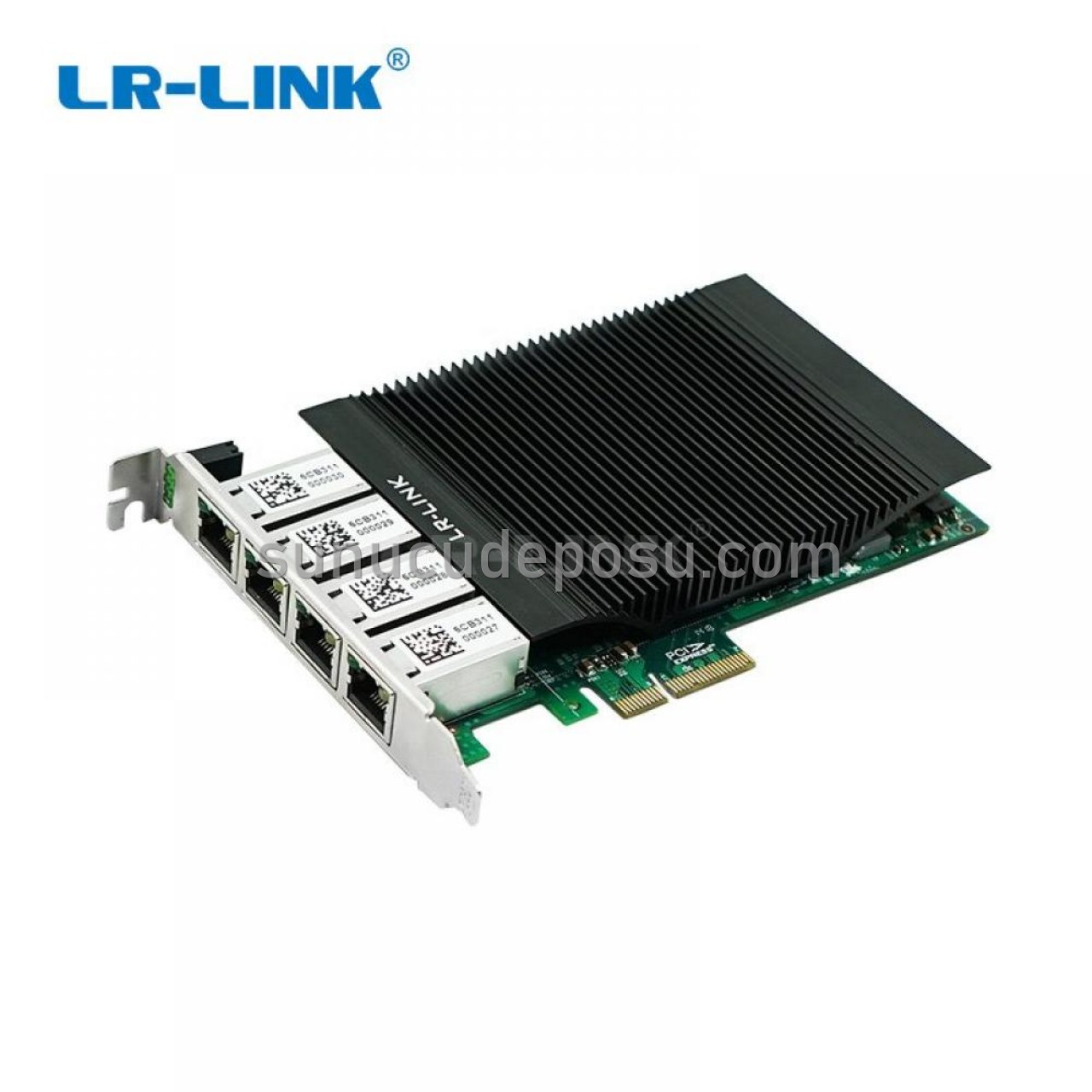

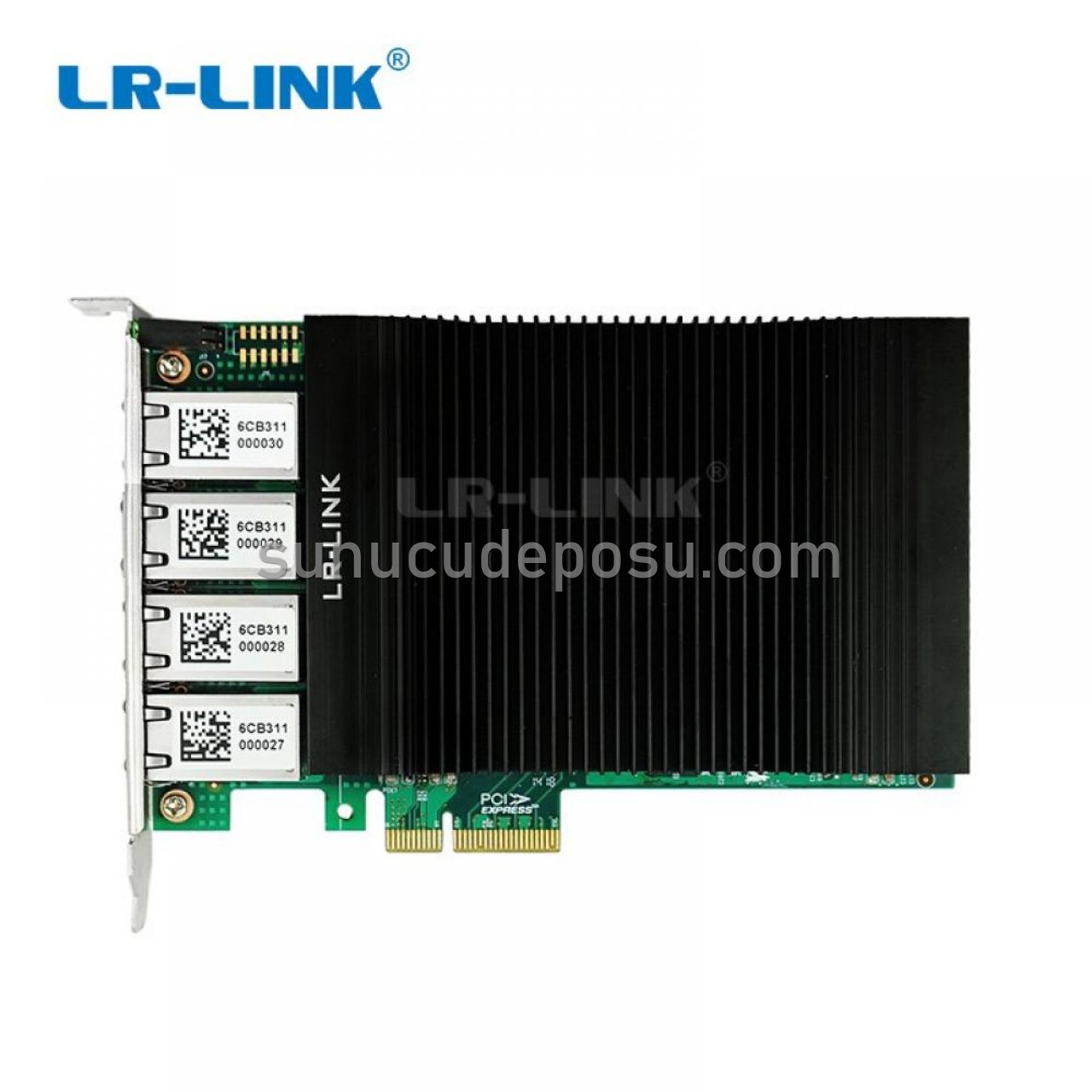

LRES2004PT-POE
PCI Express x4 Quad Port 802.3at PoE+ Gigabit Vision Frame Grabber Card (Based on Intel I350)
Key Features
• Quad Port 100/1000Mbps Industry Adapter
• PCI Express (PCIe) v2.1(2.5GT/s) x4 lanes
• Supports +12V DC AT/ATX input
• Powered Device (PD) auto detection and classification per PoE+ port
• Support 802.3at and IEEE 802.3af, two port delivers up to 30W of power, 95W total power budget
• 2.25KV Isolation protection on LAN ports and power
• Support WOL,PXE boot
Datasheet:

Controller
|
Intel I350
|
Transmission Rate Per Port
|
10/100/1000 Mbps
|
Network Standard Physical Layer Interfaces
|
1000BASE-T:Cat 5eor higherup to 100m
|
100BASE-Tx:Cat5/5e/6or higherup to 100m
|
Jumbo Frame Support
|
Up to 9.5 KB
|
Operating Temperature
|
0 °C to 55°C (32 °F to 131°F)
|
Boot Option and Virtualization
|
PXE support, Intel® VT-c
|
LED Indicators
|
1000Mbps/s:Yellow Link and Green Ack,
|
100Mbps/s:Green Link and Green Ack,10Mbps/s: Not illuminate
|
Operating System Support
|
Windows Server2003/ 2008 /2008 R2 / 2012 /2012 R2 /2016 R2
|
WindowsXP / Vista /7 / 8 / 8.1 / 10
|
Linux Stable Kernel version 2.4.x / 2.6.x/ 3.x/ 4.xor later
|
Linux SLES 9 / 10 / 11or later
|
VMwareESX/ESXi4.x/5.x/6.xor later
|
