LRES2002PT-POE

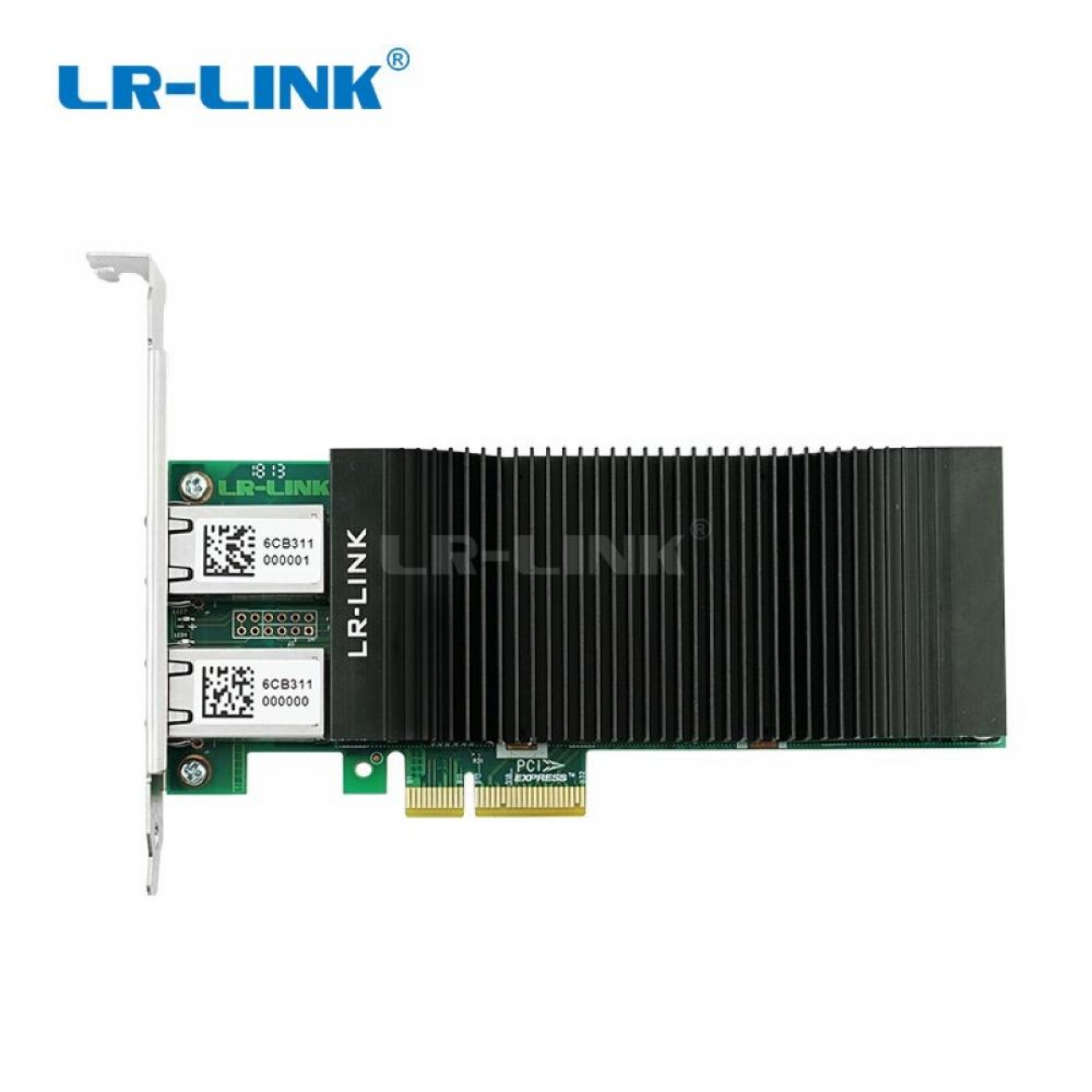

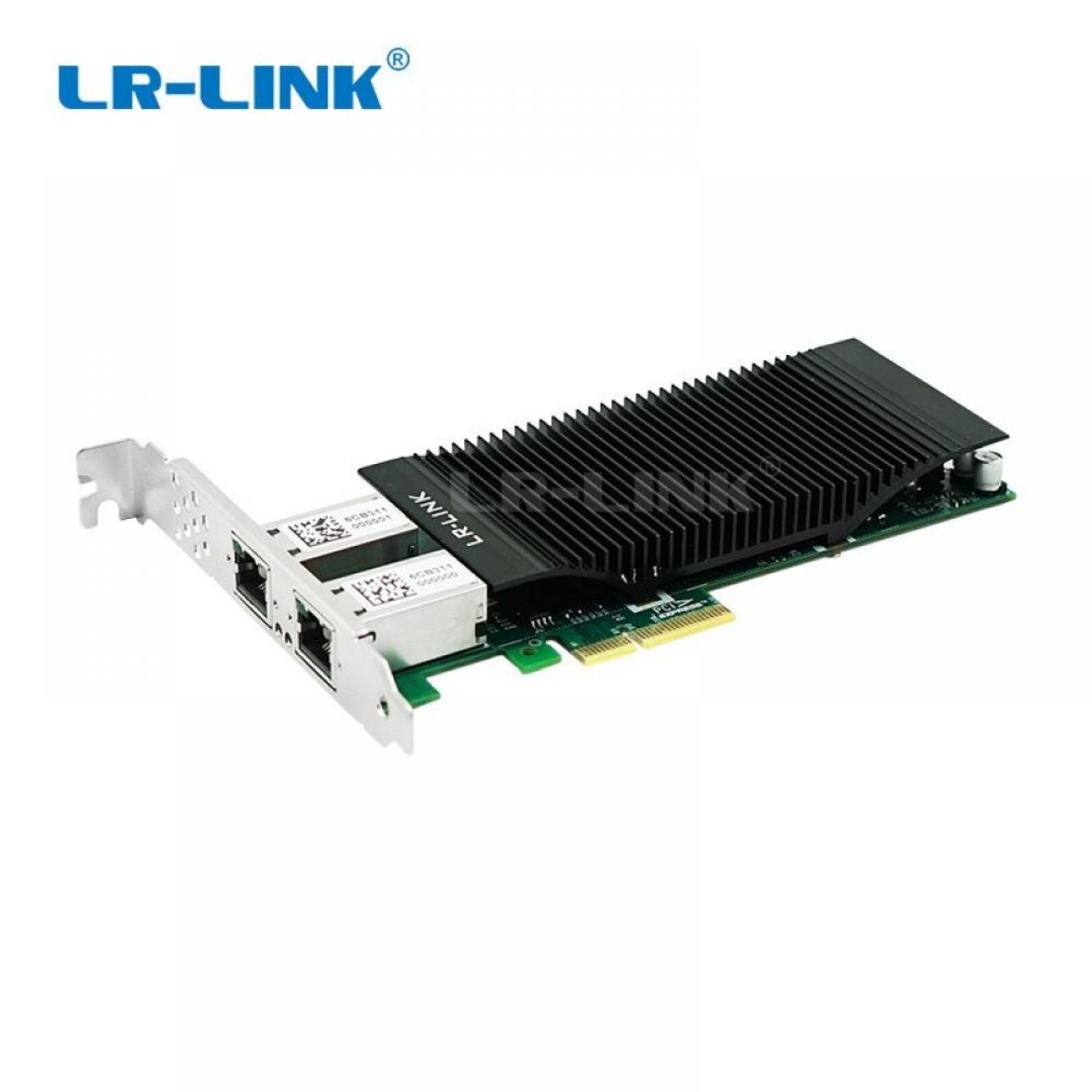

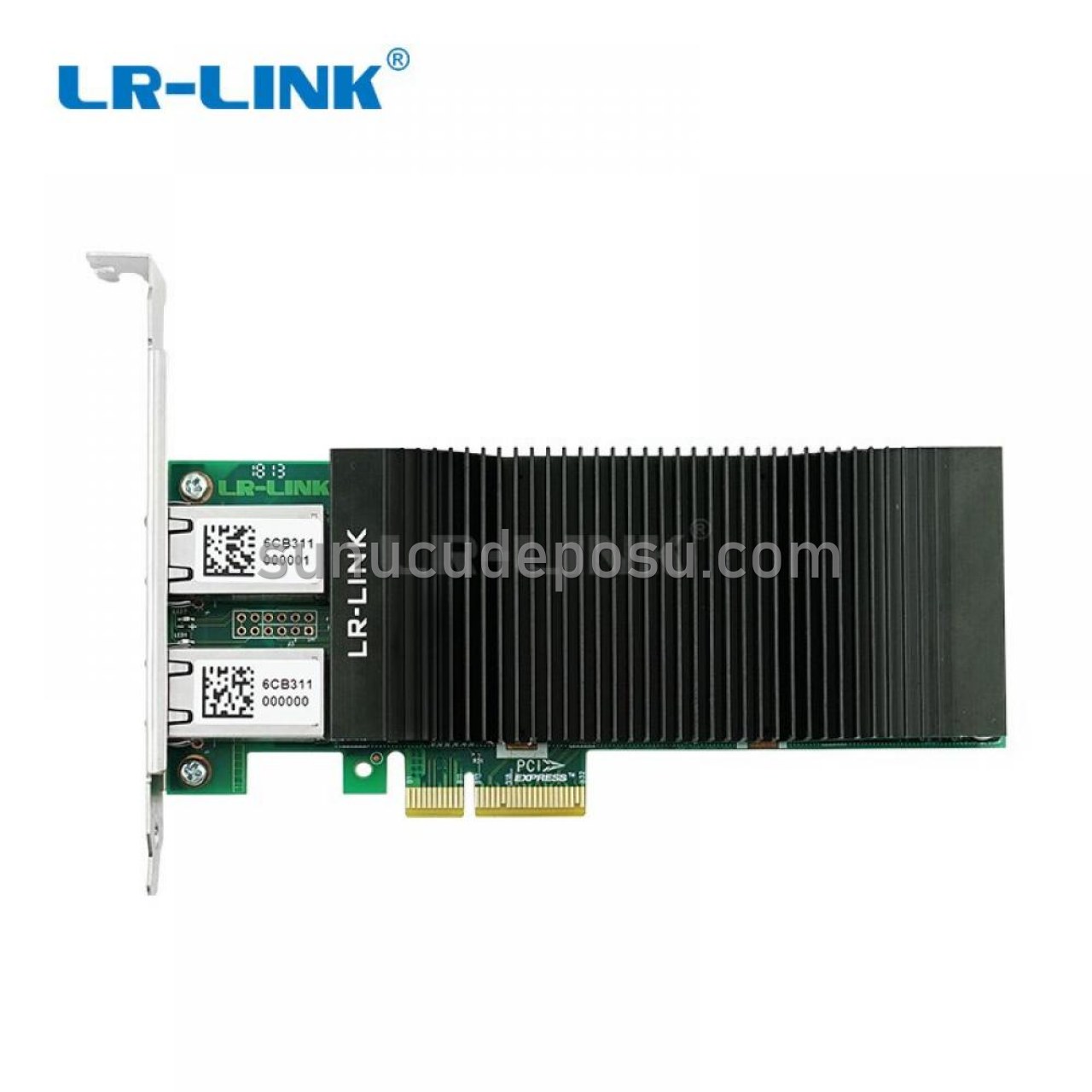

PCI Express x4 Dual Port 802.3at PoE+ Gigabit Vision Frame Grabber Card (Based on Intel I350)
Key Features
• Dual Port 10/100/1000Mbps adapter
• PCI Express (PCIe) v2.0(2.5 GT/s) x1 lanes
• Dual Port PoE+ output power consumption up to 30W per port
• PCI Express (PCIe) +12V Power Supply
• Powered Device (PD) auto detection and classification per PoE+ port
• Support 802.3at and IEEE 802.3af
• Selected RJ45 connector with thickened gold to ensure more reliable connection
• Special screw lock to make sure the connection more stable
• Low Profile and full-Height bracket
Datasheet:
|
Features |
|
|
Controller |
Intel(R) 82576EB |
|
Cable Medium |
Copper Cable |
|
Cable type |
Cat 5E and Cat6:1000Base-T up to 100m (POE power min requirement Cat5) |
|
Cat 5E and Cat6:100Base-T up to 100m (POE power min requirement Cat5) |
|
|
Bracket |
Full-height bracket |
|
TDP (max) |
3W |
|
Single PoE Output (max) |
30W |
|
Support OS |
Windows XP |
|
Windows Vista |
|
|
Windows 7 |
|
|
Windows 8/8.1 |
|
|
Windows 10 |
|
|
Windows Server 2003 /R2 |
|
|
Windows Server 2008 /R2 |
|
|
Windows Server 2012 /R2 |
|
|
Windows Server 2016 /R2 |
|
|
Linux Stable Kernel version 2.4.x / 2.6.x / 3.x /4.x or later |
|
|
Red Hat Enterprise Linux 5 / 6 / 7 or later |
|
|
SUSE Linux Enterprise Server 10/11 or later |
|
|
VMware ESX/ESXi 4.x/5.x/6.x or later |
|
|
FreeBSD 9 / 10 or later |
|
|
Connector |

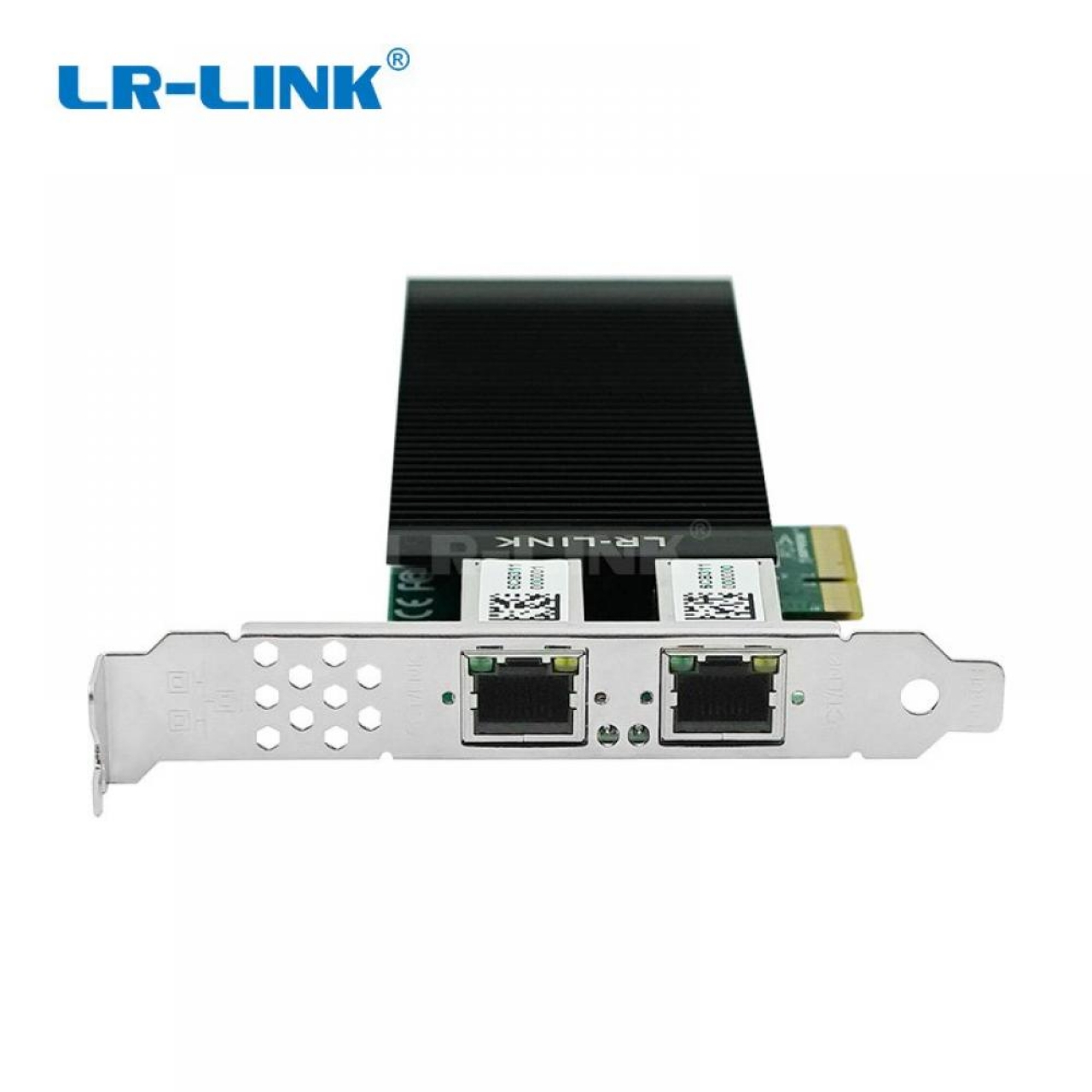

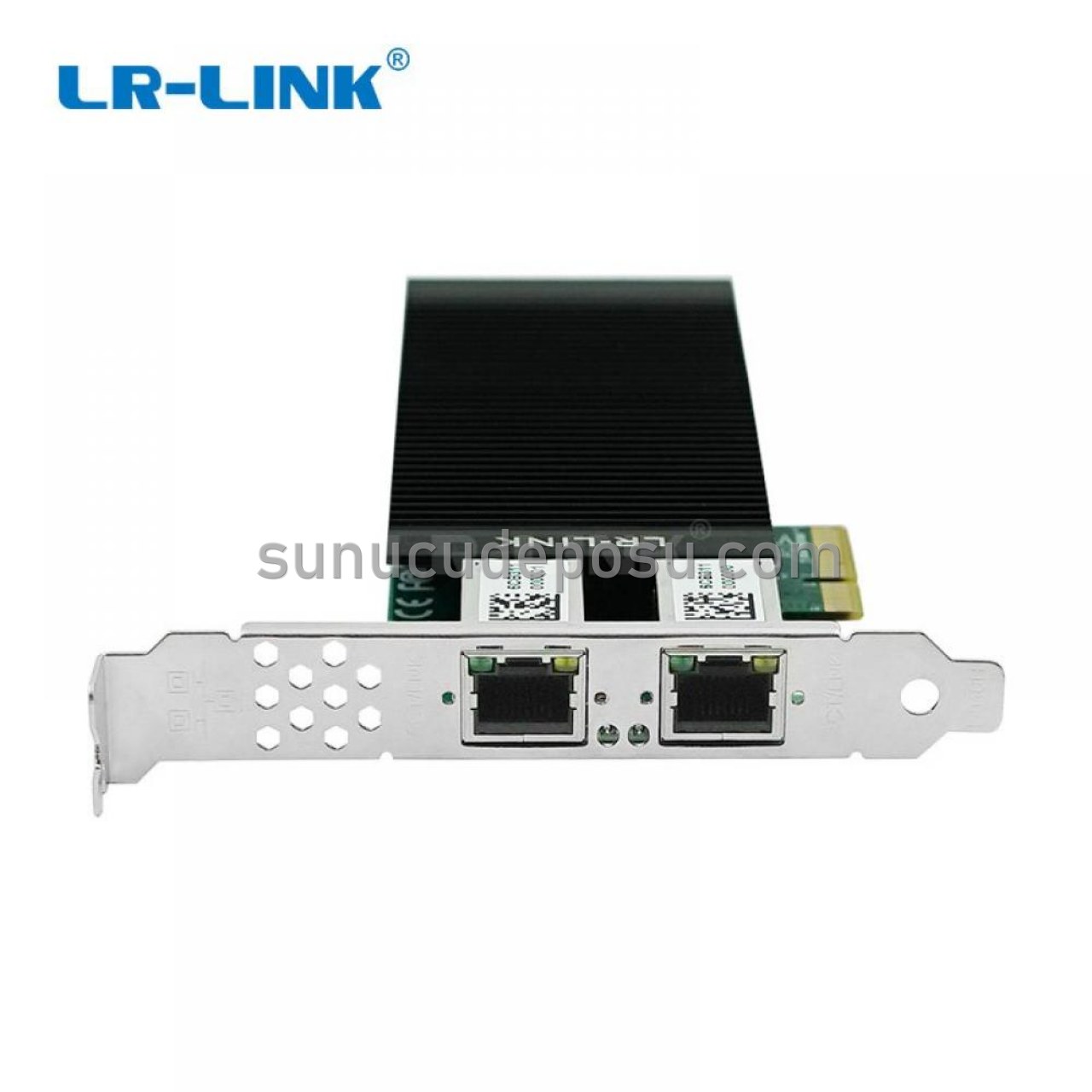

2 *1G 8-Pin RJ45 interface |
|
PCIe Bus Type |
PCI Express v2.0(2.5GT/s)x4；compatible with x8 x16 lanes |
|
Rate |
100Mbps/1000Mbps |
|
Power Supply |
PCIe power supply +3.3V±9%/ +12V±8% |
|
Technical Features |
|
|
Ethernet Power Mangement |
Yes |
|
IEEE Standard |
IEEE 1588 IEEE 802.3 IEEE 802.1Q VLANs IEEE 802.3u 100Base-TX Fast Ethernet IEEE802.3x, IEEE802.3af IEEE802.3at |
|
PXE |
Yes |
|
DPDK |
Yes |
|
Jumbo Frame Packet |
Yes |
|
iSCSI Support |
No |
|
FCoe Support |
No |
|
WOL |
No |
|
Environment Features |
|
|
Operating Temperature |
0 ℃ to 55 ℃(32 ℉ to 131 ℉) |
|
Storage Temperature |
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
|
Storage Humidity |
90% non condensing under 35℃ |
|
Certification |
FCC B, UL, CE, VCCI, BSMI, CTICK, MIC |
|
LED Indicator |
|
|
LED Indicator |
1000Mbps: LINK: Yellow, ATC: Green |
|
10Mbps/100Mbps: ACT: Green |
|
|
Driver |
|
|
Windows |
Intel(R) Gigabit ET Dual Port Server Adapter |
|
Linux |
Intel Corporation 82576 Gigabit Network Connection (rev 01) |
|
Testing Details |
|
|
Server/User Configuration |
CPU:Intel Xeon E5-2658 v3 @ 2.00GHz |
|
Main Board: Giada N50M-VU |
|
|
RAM:16 GB ( Hynix DDR4 2133MHz ) |
|
|
System Disk:eDlrre SSD ( 60 GB ) |
|
|
OS: Centos 7.1 |
|
|
TCP Bandwidth / Throughput testing |
Test Topology:S-C |
|
Server:iperf -s |
|
|
Client:iperf -c 192.168.30.20 -P 10 -i 5 -t 60 |
|
|
Testing Application Platform |
|
|
Server |
DELL R710,DELL R720,DELL R730 |
|
Lenovo 8871 |
|
|
HUAWEI H22M-03 |
|
|
HP DL360P Gen8 |
|
|
Main Board |
Giada N50M-VU |
|
MSI B350M MORTAR |
|
|
Supermicro Xl0SRL-F |
|
|
Intel S1200SPS |
|
|
Intel S1200BTL |
|
|
Intel S1400PF |
|
|
Intel S2600IP |
|
|
ASUS X79Z |
|
|
ASRock B250M-HDV |
|
|
GIGABYTE B75-D3V |
|
|
ASUS P8H77-V LE |
|
|
Physical Features |
|
|

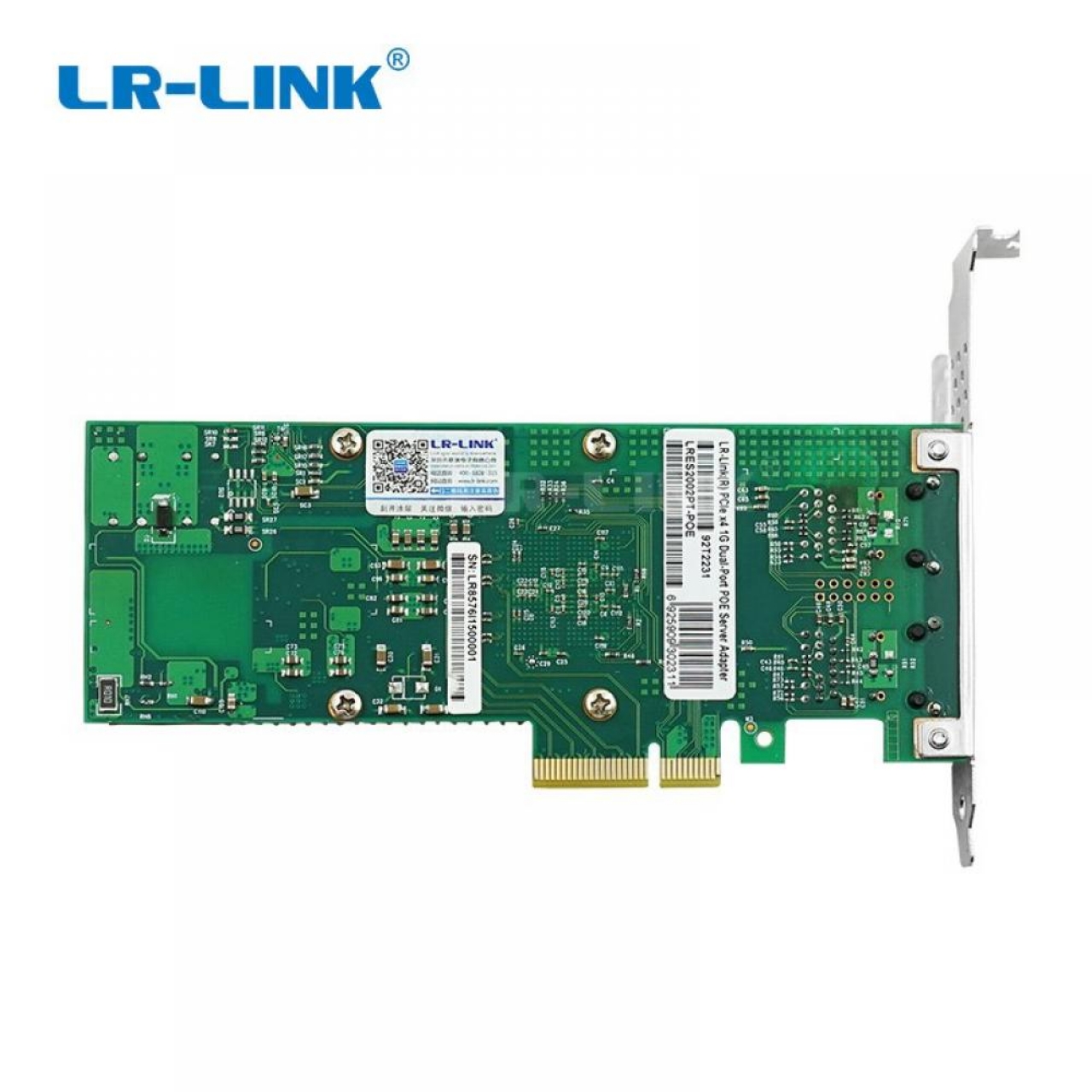

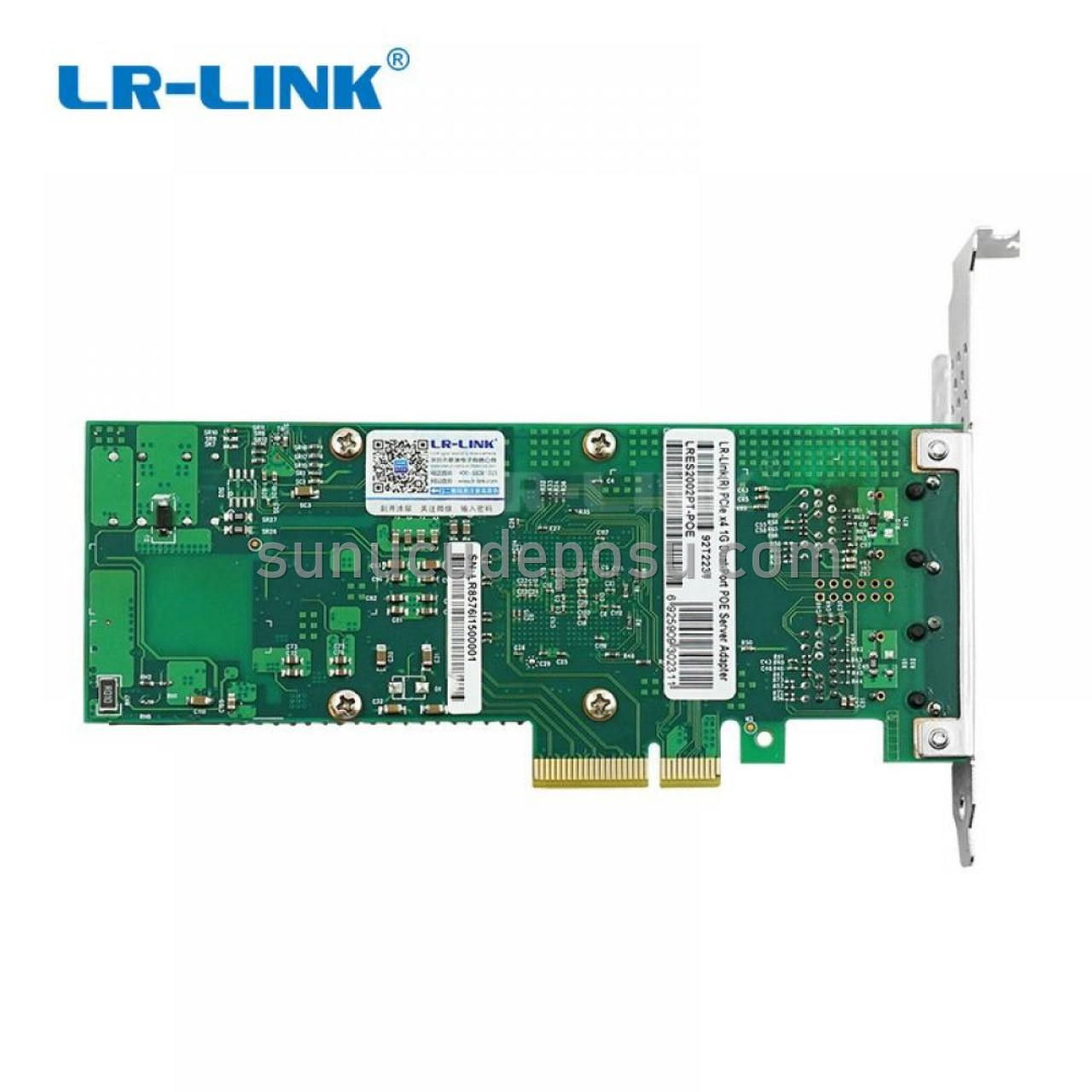

PCB尺寸(mm) |
159.5*68.8*1.6 |
|
Weight (g) |
148 |
