LRES2201PT

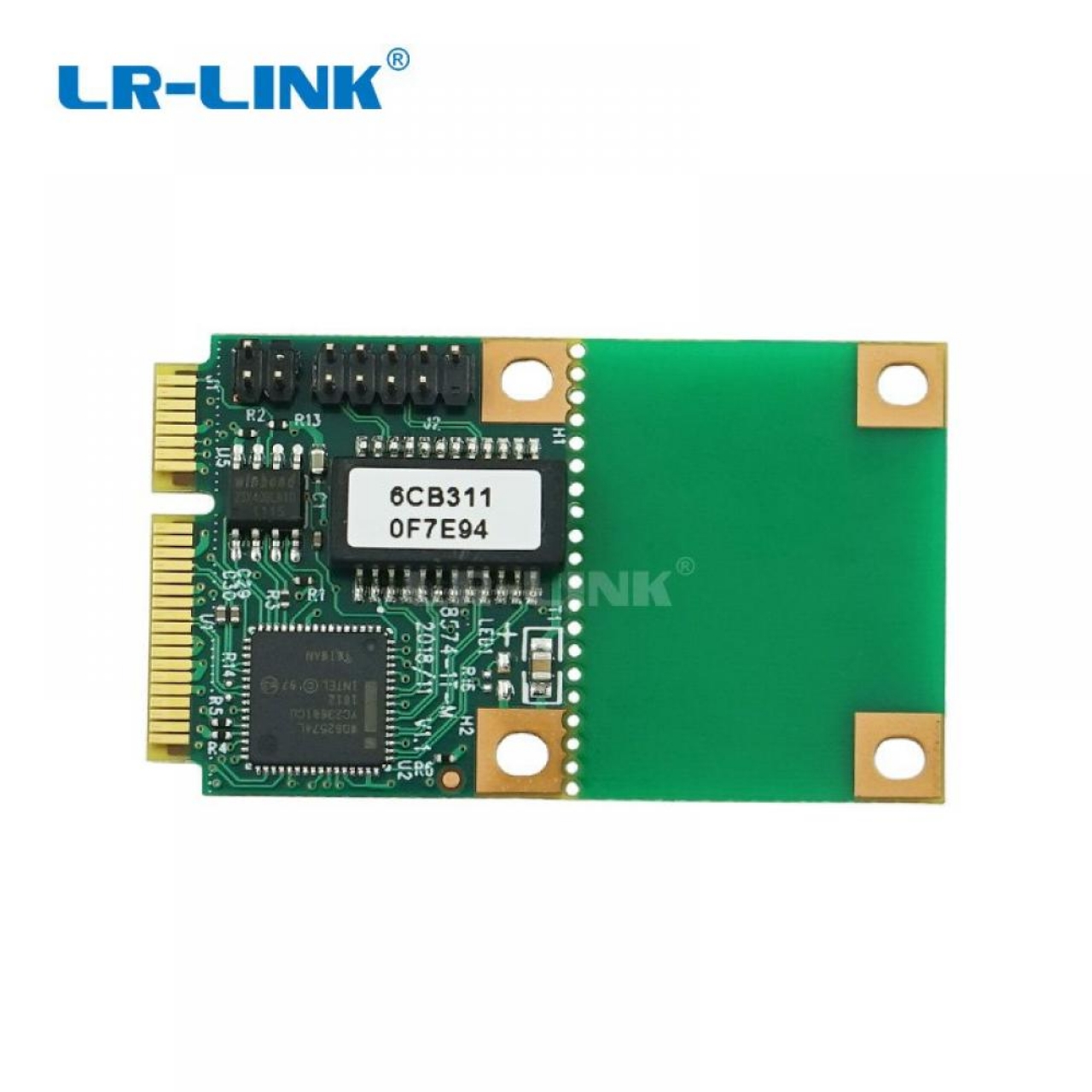

Mini PCIe Single-port Copper Gigabit Ethernet Network Adapter Intel 82574 Based
Key Features
Support Mini Low profile and full-height
Based on Intel 82574 controller
2 x RJ45
Datasheet:
|
Specifications |
|
|
Controller |
Intel(R) 82574 |
|
Cable Medium |
Copper |
|
Cable Type |
1000Base-T Cat5E/6 or higher:up to 100m |
|
100Base-Tx Cat5/5E/6 or higher: up to 100m |
|
|
10Base-T Category 3/4/5/5E/6 or higher: up to 100m |
|
|

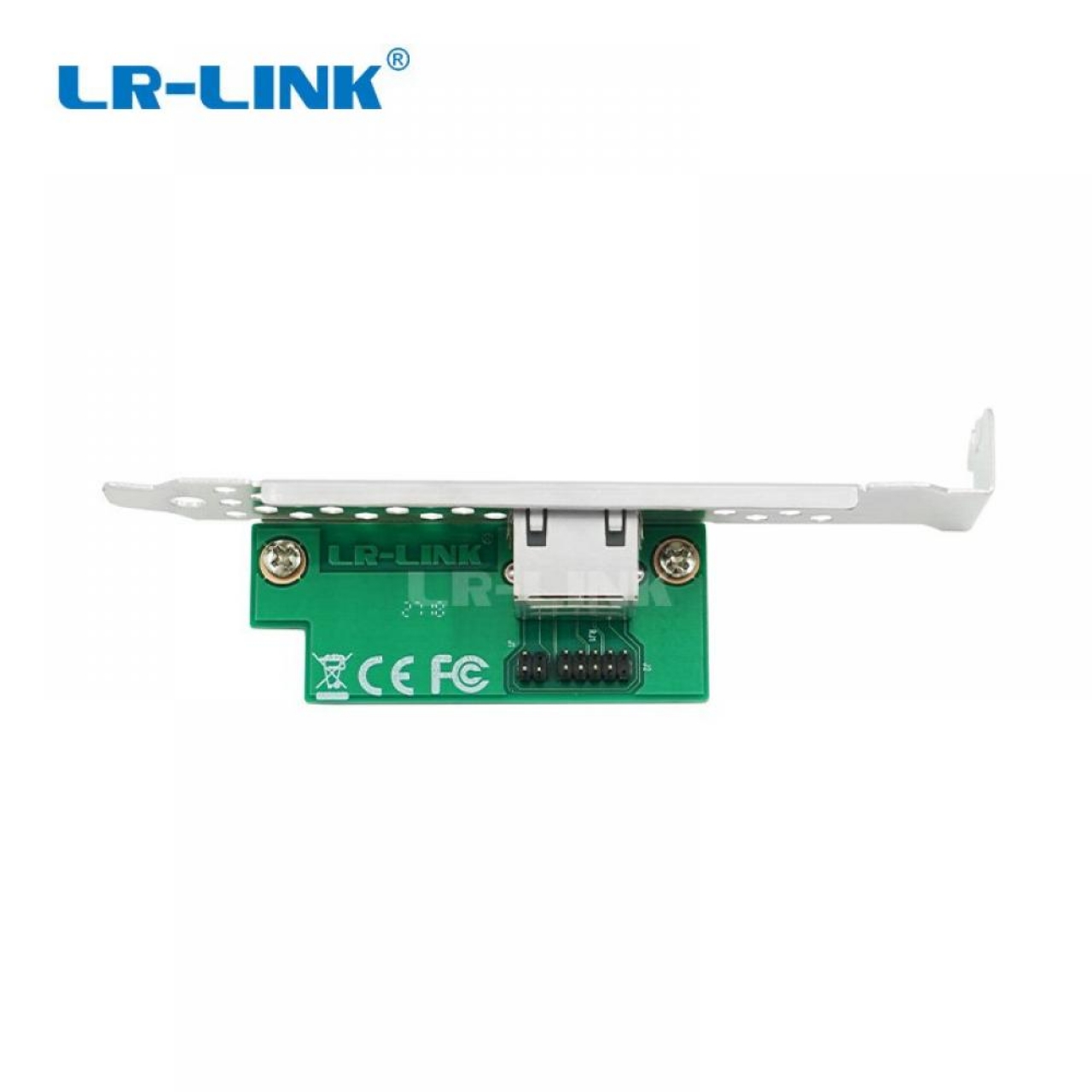

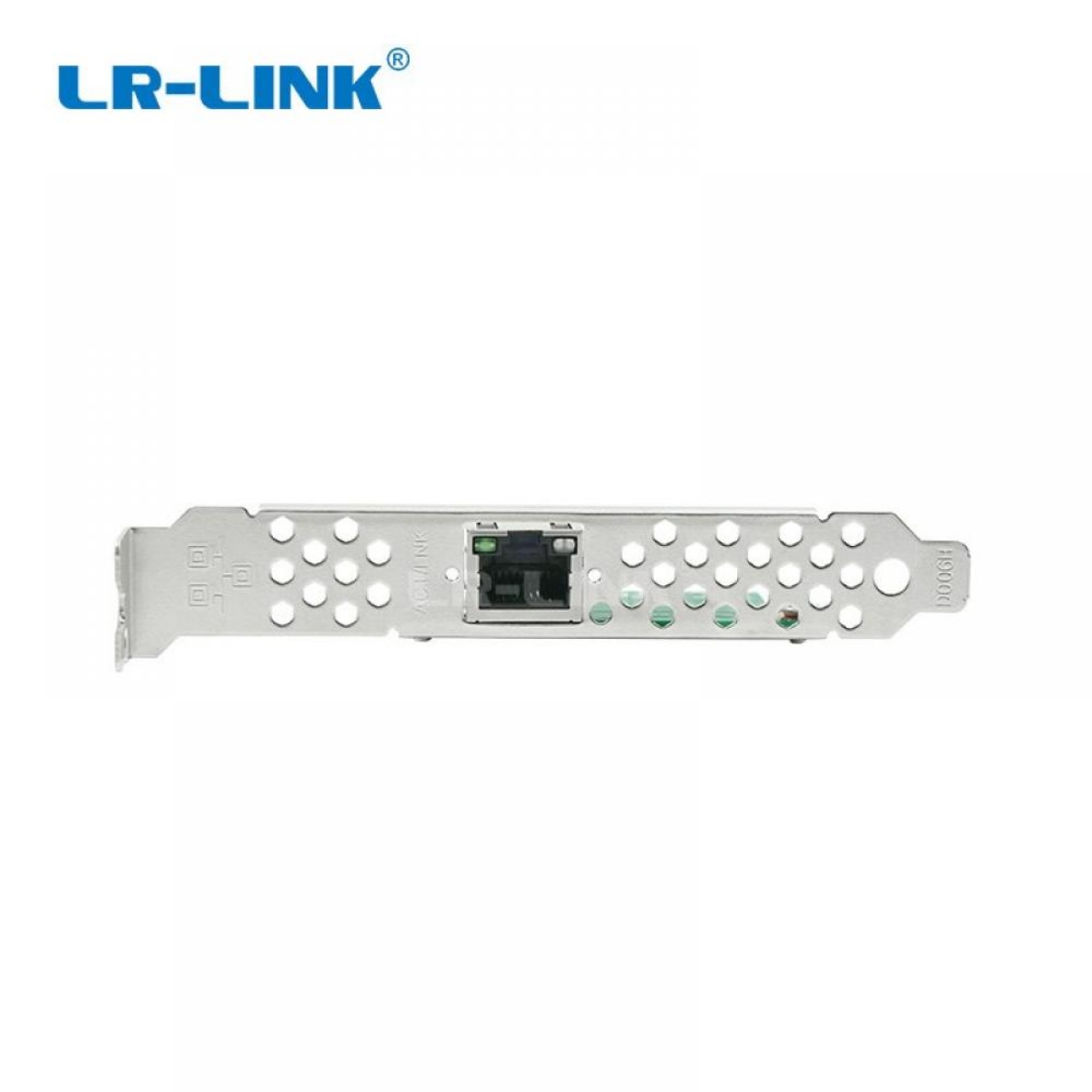

Bracket |
Low Profile and Full-height Bracket |
|
Operating System Support |
Windows XP |
|
Windows 7 |
|
|
Windows Vista |
|
|
Windows 8/8.1 |
|
|
Windows 10 |
|
|
Windows Server 2003 R2 |
|
|
Windows Server 2008 |
|
|
Windows Server 2008 R2 |
|
|
Windows Server 2012 |
|
|
Windows Server 2012 R2 |
|
|
Windows Server 2016 |
|
|
Windows Server 2016 R2 Core |
|
|
Linux Stable kernel version 2.4.x/2.6.x/3.x/4.x or later |
|
|
RHEL/CentOS 5.x/6.x/7.x or later |
|
|
Linux SLES 11 SP3 / SLES 12 or later |
|
|
FreeBSD 9 / 10 / 11 or later |
|
|
VMware ESX/ESXi 4.x/5.x/6.x or later |
|
|
Connector |
8-Pin RJ45 |
|
PCIe Bus |
PCI Express v1.1 (2.5GT/s) |
|
Transmission Rate |
10/100/1000Mbps |
|
Technical Parameters |
|
|
IEEE Standard |
IEEE 802.3 IEEE802.3ad IEEE 802.1p IEEE 802.1Q VLANs IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
|
PXE |
Yes |
|
DPDK |
Yes |
|
Jumbo Frame |
Yes |
|
iSCSI |
No |
|
FCoE |
No |
|
WOL |
No |
|
Environment Features |
|
|
Operating Temperature |
0 ℃ to 55 ℃(32 ℉ to 131 ℉) |
|
Storage Temperature |
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
|
Storage Humidity |
90% non condensing under 35℃ |
|
Certification |
FCC B, UL, CE, VCCI, BSMI, CTICK, MIC |
|
LED |
|
|
LED |
1000Mbps : Green + Green Blink |
|
10/100Mbps : Green Blink |
|
|
Physical Features |
|
|
PCB size(mm) |
30*26.8*1.0（M）+ 49*23.5*1.6（M1） |
|
Weight(g) |
38 |
